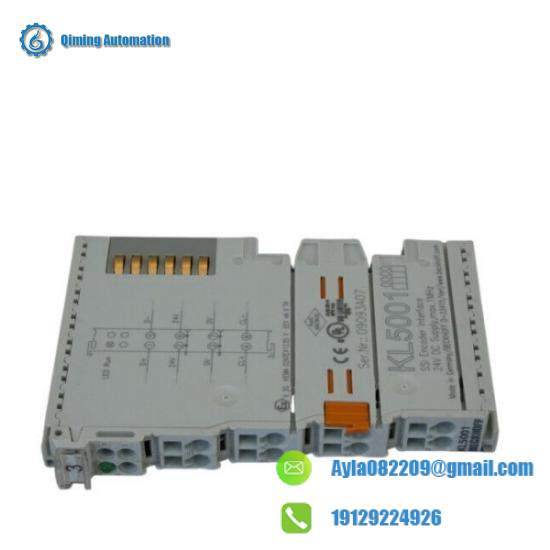

Beckhoff KL5001 Bus Terminal: 1-Channel Encoder Interface Module

Technology:SSI encoder interface

Channels:1 encoder interface

Encoder Connection:Binary input: D+, D-; Binary output: Cl+, Cl-

Power Supply:24V DC via power contacts

Current Consumption:Typically 20mA without encoder

Encoder Supply:24V DC via power contacts

Current Consumption K-bus:Typically 25mA

Weight:Approximately 60g

    Experience unparalleled accuracy with the Beckhoff KL5001 Bus Terminal, which offers a single-channel encoder interface module tailored for precise data transfer in industrial automation environments.

    Crafted with robust materials, this terminal ensures longevity and reliability under demanding conditions, making it a perfect fit for high-precision measurement and control tasks.

    Its binary input and output connections streamline the setup process, allowing for seamless integration into existing systems with minimal effort. The terminal’s binary interface ensures compatibility with a wide range of encoders, enhancing its versatility across various industries.

    The KL5001 is powered directly from the 24 V DC source, reducing wiring complexity and ensuring a secure and efficient power supply. Its low current consumption, even when no encoder is connected, helps in optimizing energy usage.

    With a typical response time of 4 milliseconds, read inputs and write to the K-bus are executed swiftly, ensuring real-time monitoring and control capabilities. This feature is crucial for applications where speed and responsiveness are paramount.

    Weighing approximately 60 grams, the compact design of the KL5001 makes it easily portable and suitable for installation in space-constrained areas without compromising on performance.
