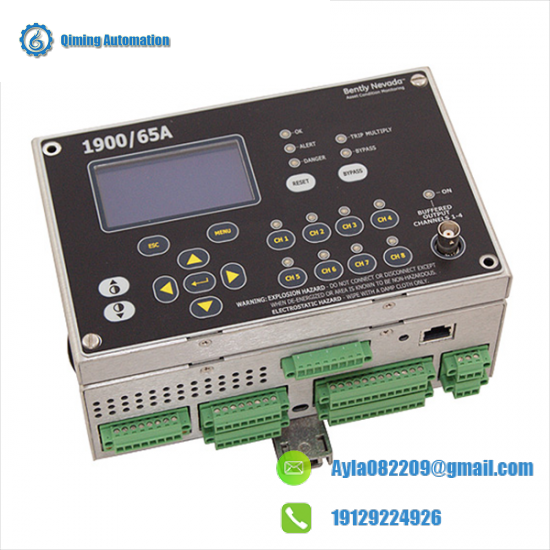

Bently Nevada 1900/65A, 172323-01 – General Purpose Equipment Monitor

Operating Range:-40°C to +70°C (-40°F to +158°F)

Sampling Rate:Up to 1 kHz

Resolution:24-bit ADC

Input Channels:4 vibration/position/speed inputs, 4 temperature inputs

Relay Outputs:6 programmable relay outputs

Recording Outputs:4 configurable 4-20 mA recorder outputs

Power Supply:12V DC or 24V DC

Dimensions:176 x 176 x 131 mm

Weight:1.2 kg (2.64 lbs)

    Equipped with advanced 24-bit Analog-to-Digital Converter (ADC) technology, the Bently Nevada 1900/65A ensures unparalleled accuracy in monitoring the operational status of industrial machinery.

    The monitor supports four vibration, position, speed, and temperature inputs, enabling comprehensive monitoring of critical parameters for optimal performance and maintenance.

    With configurable scale factors and full-scale ranges, users can tailor the monitor’s sensitivity to their specific needs, ensuring precise data interpretation.

    Internal OK checks with status provide real-time feedback on system health, allowing proactive maintenance actions to prevent unexpected downtimes.

    The inclusion of independent alert and danger setpoints empowers users to define thresholds for early warning notifications, enhancing safety protocols and operational efficiency.

    Featuring a 200-entry event list, the monitor tracks historical data for post-analysis and trend identification, aiding in predictive maintenance strategies.
