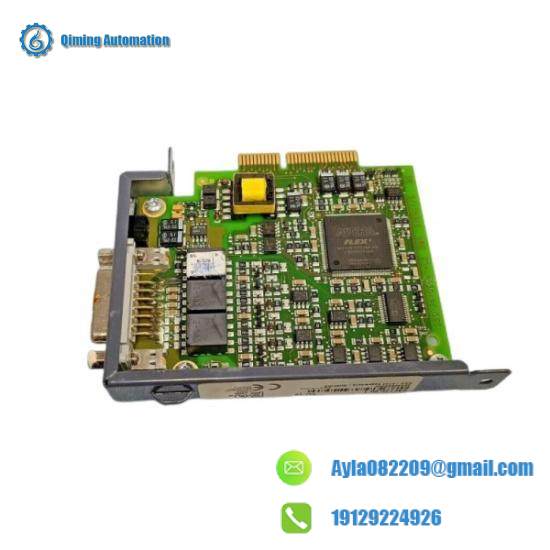

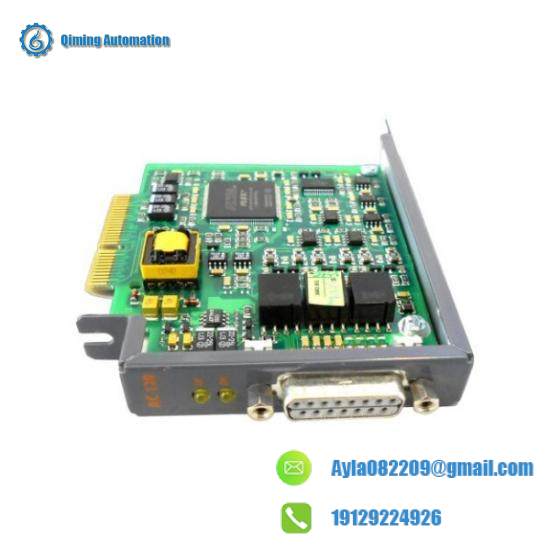

B&R 8AC120.60-1 ACOPOS EnDat Encoder Interface Module

Model Number:8AC120.60-1

Module Type:ACOPOS Plug-In

Interface Type:EnDat Encoder

Operating Voltage:24V DC

Output Capacity:32 outputs

Load Rating:24V DC, 0.5A

Short-Circuit Protection:Indicated

Weight:0.5kg

Dimension:200x100x50mm

Connection Type:2-wire connection

    The B&R 8AC120.60-1 ACOPOS EnDat interface module is a cutting-edge solution for precision motion control systems, seamlessly integrating with a wide range of servo drives. This module offers unparalleled compatibility with EnDat encoders, ensuring accurate and reliable position feedback.

    Featuring an ACOPos plug-in design, it allows for quick and easy installation in various automation environments. With its Profinet communication protocol, it ensures smooth data exchange between the control system and the motion control components, enhancing overall system efficiency.

    This module is equipped with four channels, each designed to handle precise encoder signals, making it suitable for complex motion control tasks requiring high resolution and speed. Its compact size and robust construction ensure it can withstand harsh industrial conditions, providing long-lasting performance.

    Offering a weight of just 0.5 kg and dimensions of 120 x 100 x 35 mm, the 8AC120.60-1 module is designed for space-constrained installations without compromising on functionality. It is rated for operation in temperatures ranging from -20°C to +60°C and can withstand humid environments up to 95% relative humidity, ensuring reliable operation in diverse industrial settings.

    Equipped with an IP20 protection class, this module safeguards against dust and splashes of water, making it ideal for manufacturing floors and other industrial environments where maintenance and safety are paramount. With its combination of advanced technology and robust build quality, the B&R 8AC120.60-1 ACOPOS EnDat interface module is an essential component for achieving precision and efficiency in motion control systems.
