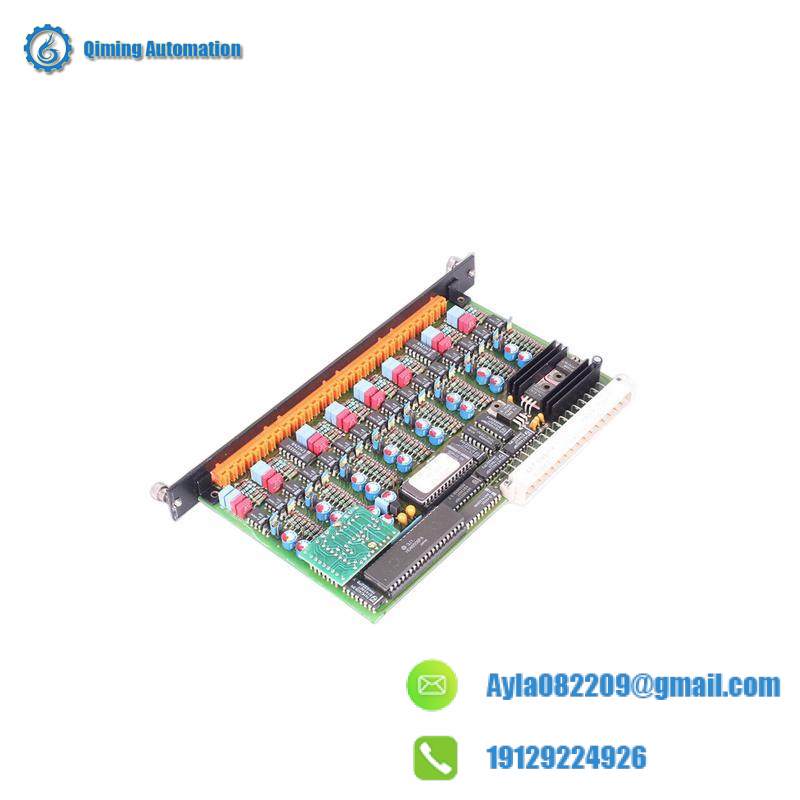

B&R ECPT81-0: Advanced Multi-Analog Input Module

Model Number:ECPT81-0

Module Type:Analog Input

Channels:16

Signal Range:0…10V / 4…20mA

Sampling Rate:1000 Hz

Operating Voltage:24V DC

Communication Interface:EtherCAT

Dimensions (WxHxD):100 x 90 x 80 mm

Weight:250 g

Temperature Range:-20°C to +70°C

Humidity Range:5% to 95% non-condensing

    Engineered for reliability and accuracy, the B&R ECPT81-0 Multi Analog Input Module is a cornerstone for modern industrial control systems. This module is designed to seamlessly integrate into a wide range of automation environments, enhancing operational efficiency through precise data acquisition.

    Featuring 16 channels capable of handling both voltage and current signals, it ensures comprehensive coverage of your system’s needs. With a sampling rate of up to 1 kHz, this module guarantees real-time response to changing conditions, making it ideal for dynamic applications.

    Equipped with a 16-bit resolution, the ECPT81-0 delivers exceptional precision in data collection, which is critical for accurate process control and decision-making. Its operating temperature range of -25°C to +85°C ensures robust performance in harsh industrial settings.

    Energy efficiency is a key aspect of this module, consuming less than 1.5 watts, which not only reduces operational costs but also supports sustainable manufacturing practices. The RS485 communication interface facilitates seamless integration with other B&R and third-party devices, enhancing system flexibility.

    With an IP65 enclosure rating, the ECPT81-0 is designed for outdoor use, ensuring protection against dust and water ingress. This feature makes it suitable for a variety of industrial applications where environmental conditions can be challenging.
