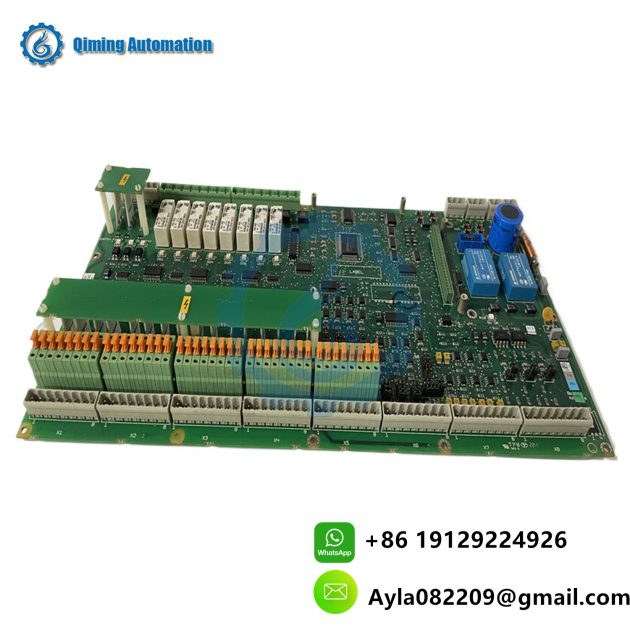

ABB DATX110 3ASC25H209 Product Introduction
Product Description
The ABB DATX110 3ASC25H209 is a high-reliability digital input/output module, designed to serve as a critical interface in industrial automation systems, particularly in heavy-duty applications such as steel manufacturing, mining, and large-scale industrial machinery control. It efficiently handles both digital input signals from field devices (like sensors, limit switches, and proximity detectors) and digital output commands to actuators (such as relays, solenoids, and contactors), enabling seamless data exchange between field equipment and central control systems like PLCs or DCS. This module is engineered to thrive in harsh industrial environments, withstanding extreme temperatures, vibration, and electrical noise, making it ideal for mission-critical operations where uninterrupted signal transmission and robust performance are paramount. Its versatile design allows for easy integration into existing automation setups, enhancing system flexibility and operational efficiency.
Technical Parameters
- Digital Input Channels: 16 channels, supporting 24 V DC signals with a response time of ≤ 1 ms, ensuring rapid detection of field device status changes.
- Digital Output Channels: 16 channels, relay-type outputs (NO/NC) with a maximum switching voltage of 250 V AC and current of 5 A, suitable for controlling various industrial actuators.
- Operating Voltage: 24 V DC ± 10%, compatible with standard industrial power supply systems.
- Power Consumption: Typical 18 W, balancing performance with energy efficiency.
- Isolation: 2.5 kV galvanic isolation between input/output channels and the backplane, minimizing electromagnetic interference and enhancing system safety.
- Operating Temperature Range: -20 ~ 70 °C, suitable for extreme industrial working conditions.
- Storage Temperature Range: -40 ~ 85 °C, maintaining integrity during storage and transportation.
- Relative Humidity: 5% ~ 95% (non-condensing), resistant to moisture-related issues in humid environments.
- Shock Resistance: 30 g (11 ms duration), capable of withstanding mechanical impacts in rugged settings.
- Vibration Resistance: 10 ~ 500 Hz, 1 g acceleration, ensuring stability during continuous machinery vibration.
- Dimensions (L × W × H): 150 mm × 100 mm × 60 mm, compact for installation in space-constrained control cabinets.
- Weight: Approximately 400 g, lightweight for easy handling and mounting.
- Mounting Type: DIN rail mounting, compatible with standard industrial mounting systems.
- LED Indicators: Per-channel LED status indicators for input and output signals, facilitating quick troubleshooting and monitoring.
- Certifications: CE, UL, IEC 61131-2, meeting international safety and performance standards for industrial control modules.
The ABB DATX110 3ASC25H209 is available for global sale, covering all major industrial regions. Orders are processed promptly, with delivery guaranteed within 3 days, ensuring quick integration into your automation systems to minimize operational delays.
