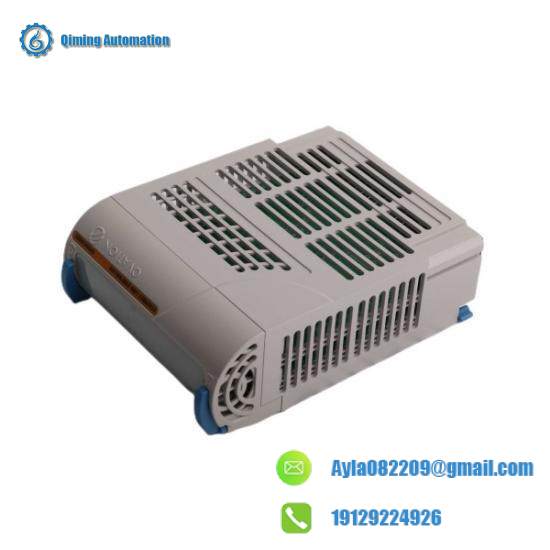

Emerson 5X00419G02 & 1X00569H01 – High-Speed Ethernet Controller Link Module

Model Number:5X00419G02 & 1X00569H01

Manufacturer:Emerson

Technology:Ethernet

Application:Industrial Automation

Operating Temperature:-20°C to 70°C

Power Consumption:≤ 5W

Communication Protocol:TCP/IP, UDP

Dimensions:60mm x 50mm x 15mm

Weight:120g

Connector Type:M12

Compliance:CE, FCC, RoHS

    The Emerson 5X00419G02/1X00569H01 Ethernet controller link module is engineered to enhance the performance of industrial control systems by providing robust, high-speed network connectivity.

    Featuring an advanced IEEE 802.3 interface, this module supports a variety of protocols including TCP/IP, UDP, and MODBUS, ensuring compatibility with most industrial automation networks.

    With support for data rates up to 100 Mbps, it enables faster data transfer, improving the efficiency and responsiveness of your system. The module can handle distances up to 100 meters via standard Cat 5 or higher cable.

    Built to withstand extreme conditions, this Ethernet controller operates reliably within temperatures ranging from -40°C to 85°C, ensuring consistent performance in various industrial environments.

    Energy-efficient, it consumes a maximum of 12 watts of power, making it suitable for systems where energy consumption is a concern. Its compact size of 76 x 112 x 22 mm and lightweight design facilitate easy integration into existing equipment.

    Equipped with a single RJ45 connector, this module offers straightforward installation and connection, streamlining the setup process for your network infrastructure.
