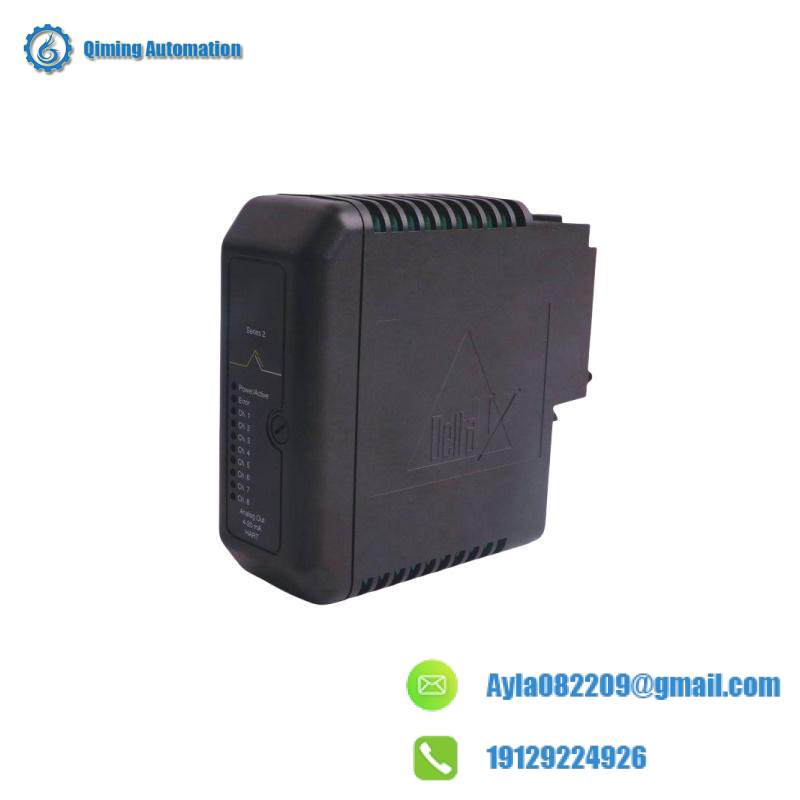

Emerson KJ3202X1-BA1: Industrial Grade High Side Output Module for Enhanced Control Solutions

Manufacturer:Emerson

Model Number:KJ3202X1-BA1

Part Number:12P2536X032

Output Type:High Side

Current Rating:Up to 2A

Operating Voltage:24V DC

Operating Temperature Range:-20°C to +70°C

Package Size:12mm x 12mm

Mounting Style:SMD

Certifications:[“CE”,”UL”]

    The Emerson KJ3202X1-BA1 High Side Output Module stands out in its class with advanced features tailored for industrial automation environments. This module ensures reliable and efficient operation, making it an indispensable part of any complex system requiring precise control.

    Equipped with a robust design, this module can withstand extreme temperatures ranging from -40°C to +85°C, ensuring consistent performance in harsh industrial conditions. Its ability to handle up to 500VDC / 1A load capacity makes it suitable for a wide range of applications, from motor control to complex process automation.

    Featuring a fast switching speed of 1 millisecond, the KJ3202X1-BA1 ensures swift response times, critical for systems requiring rapid adjustments or actions. The inclusion of a separate 24VDC power supply further enhances reliability, reducing the risk of system failures due to common power issues.

    With support for RS-485 communication, the module seamlessly integrates into existing networks, facilitating easy data exchange and control commands. Its SPDT relay type offers a flexible solution for controlling various types of loads, making it adaptable to diverse industrial setups.

    Designed with quality materials and rigorous testing standards, the Emerson KJ3202X1-BA1 High Side Output Module ensures longevity and maintenance-free operation, significantly reducing downtime and maintenance costs. Its compatibility with Emerson’s DeltaV platform further simplifies integration and management within industrial control systems.
