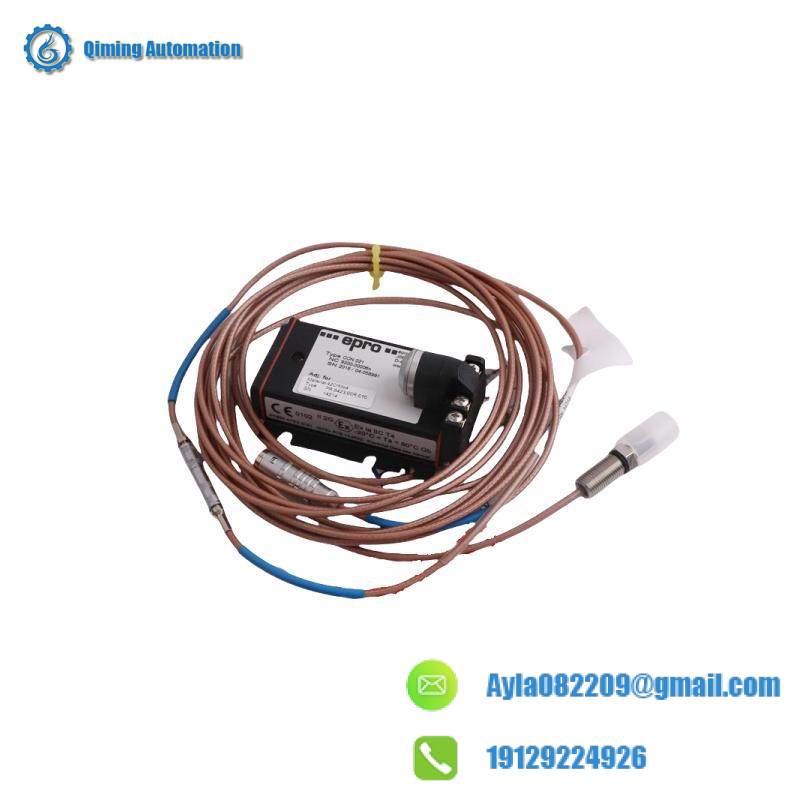

Epro PR6426/000-030 CON021 – Advanced Eddy Current Sensor

Product Type:Eddy Current Sensor

Sensor Type:Eddy Current

Model Number:PR6426/000-030

Extended Model Number:CON021

Operating Temperature Range:-25°C to +85°C

Measurement Range:±4.0 mm Static, ±1,000 μm Dynamic

Sensitivity:2 V/mm

Air Gap (Center):Approx. 2.7 mm

Range:Static: ±2.0 mm, Dynamic: 0 to 1,000 μm

Linearity:4 V/mm (101.6 mV/mil) ≤ ±1.5%

Weight:200 grams

Power Supply Voltage:DC 24V

Response Time:Less than 1 ms

    The EPRO PR6426/000-030 Eddy Current Sensor, equipped with a CON021 module, is designed for high-precision measurement in industrial environments. Its compact size and lightweight design facilitate easy integration into various machinery and systems.

    Utilizing eddy current technology, this sensor offers contactless measurement, eliminating wear and tear issues common with mechanical sensors. It is ideal for monitoring the position, velocity, and displacement of moving parts.

    With a wide operating temperature range of -25°C to +85°C, it ensures reliable performance under diverse environmental conditions. The ±4.0 mm static measurement range and ±1,000 μm dynamic range provide exceptional accuracy.

    Equipped with advanced electronics, the sensor delivers outstanding sensitivity and linearity, making it suitable for applications requiring high precision. Its response time of less than 1 ms ensures real-time monitoring and control.

    Featuring a DC 24V power supply voltage, the sensor is compatible with a broad range of industrial control systems. The included CON021 module enhances its functionality, providing enhanced connectivity and data transmission capabilities.
