Sku:E12940
GE Number:469-P5-HI-A20-E
Motor Management Type:Relay
Current Transformers:5 CT Secondaries
Input Voltage Range DC:90 – 300 Volt DC
Input Voltage Range AC:70 – 265 Volt AC
Analog Outputs:4
Current Rating:390/500 MA (MAX)
Line Voltage:90-300VDC, 70-265VAC
Enclosure Rating:20-X
Frequency Range:48-62 HZ
Phase CT:5A
Overvoltage Category:II
Insulation Voltage:300 V
Pollution Degree:2

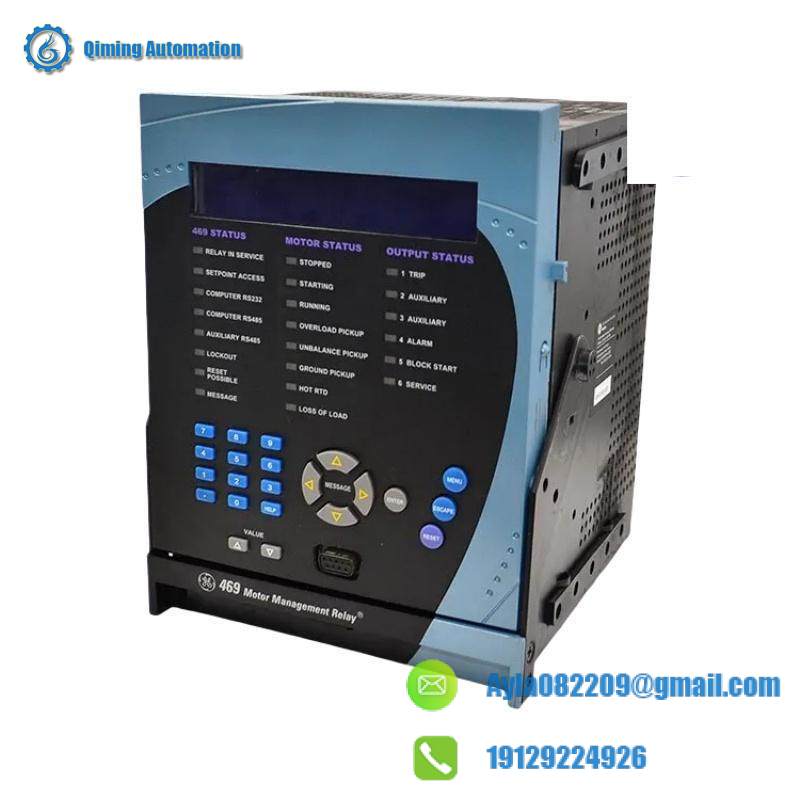

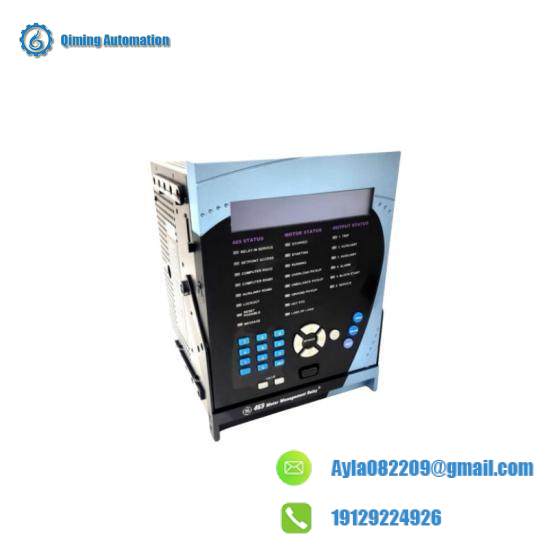

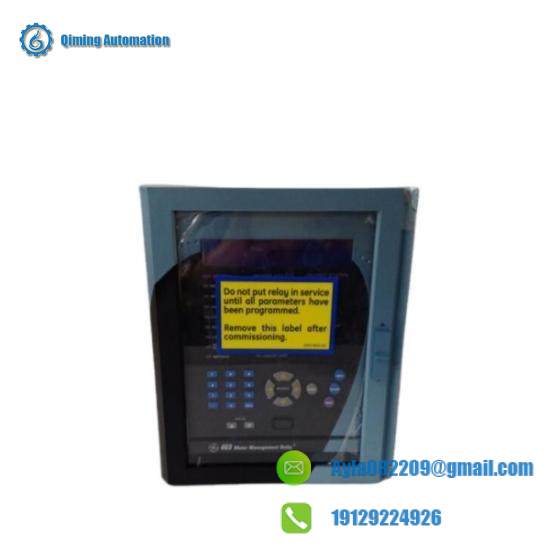

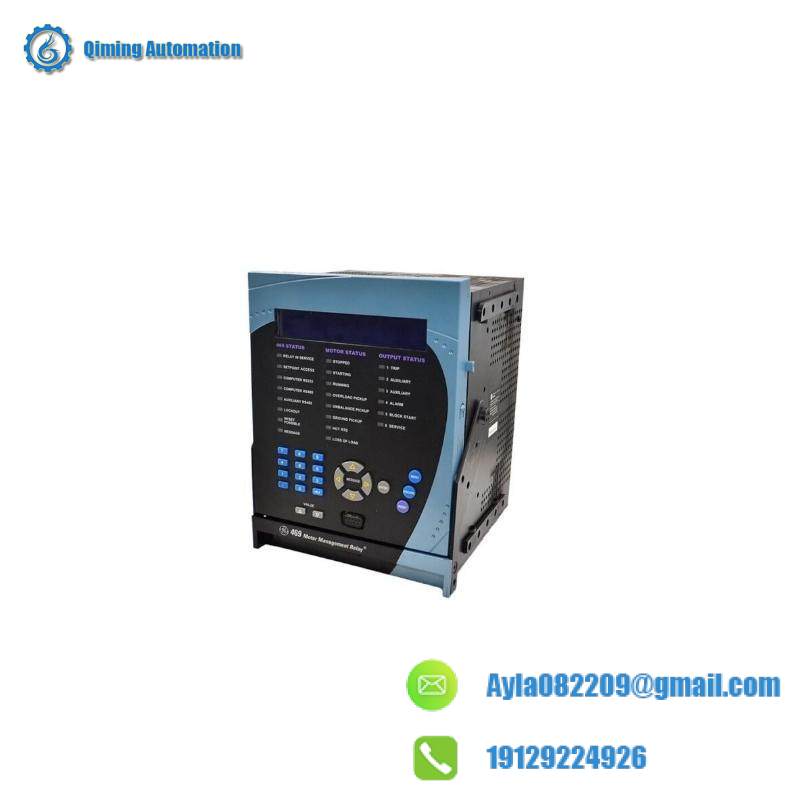

The GE 469-P5-HI-A20-E is an essential component for industrial motor management systems. It provides unparalleled protection and control for medium to large motors, ensuring optimal performance and longevity. With its advanced RTD inputs, this relay can accurately monitor the temperature and hottest point of the motor system, providing critical data for predictive maintenance. The device is equipped with four analog outputs and nine opto-isolated digital inputs, making it highly versatile and adaptable to various industrial applications. The conformal coating ensures durability and reliability in harsh chemical environments, extending the operational life of the relay. The larger LCD display enhances user experience, providing clear and detailed information at a glance. The GE 469-P5-HI-A20-E is designed to operate within a wide temperature range, from -40°C to +60°C, ensuring consistent performance under challenging conditions. The product is also compatible with the EnerVista 469 Setup software, facilitating easy configuration and integration into existing systems.
