Technical Specifications Damped Oscillation Test Level:2.5KV, 1.0 Mhz
Ground Overcurrent Curve Shapes:ANSI, IEC, IAC, Flexcurve
Definite Time Mounting Method:Panel or 19″ Rack Mount
Operating Temperature Range:-40 to 60°C
Production Tests:Dielectric Strength 1.9 kV AC for 1 second or 1.6 kV AC for one minute, per UL 508
Shipping Weight:7.7 kg or 17 lbs.

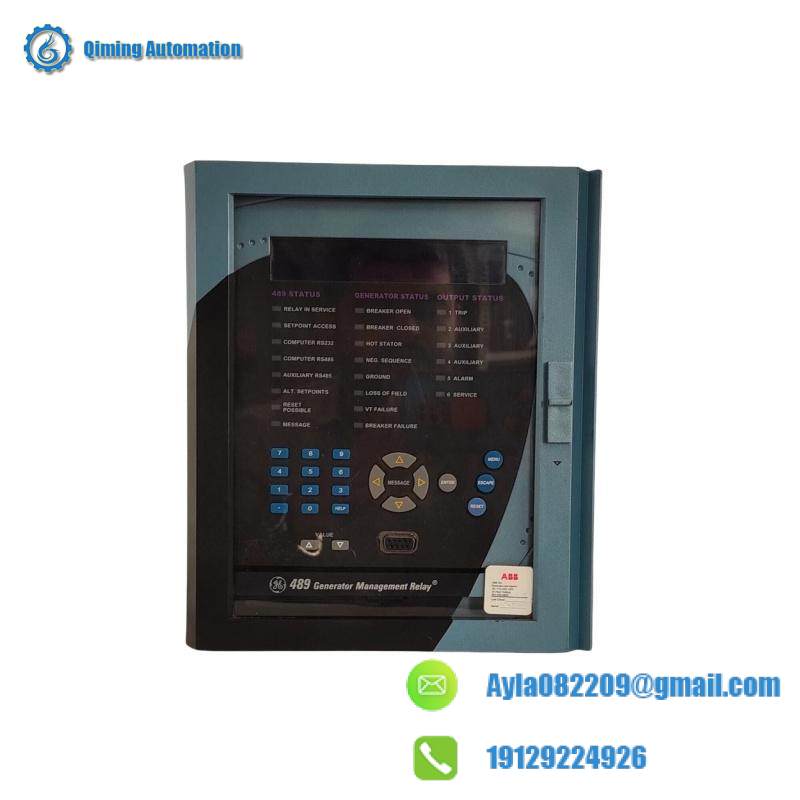

Crafted for unparalleled reliability and efficiency, the GE 489-P1-HI-A20-E-H Generator Management Relay ensures seamless integration with a variety of industrial electrical systems.
With its robust design and advanced features, this relay is capable of handling damped oscillation tests up to 2.5KV and 1.0 Mhz ground overcurrent curve shapes, adhering to ANSI, IEC, IAC, and Flexcurve standards.
Operable across a wide temperature range of -40 to 60°C, it’s designed for long-term stability in diverse environmental conditions. This relay meets stringent UL 508 dielectric strength requirements, ensuring unparalleled safety and reliability.
Featuring a lightweight design weighing in at 7.7 kg or 17 lbs., it’s easy to install and maintain, compatible with both panel and 19″ rack mounting methods. Its tachometer duty cycle exceeds 10%, providing precise monitoring capabilities.
The GE 489-P1-HI-A20-E-H includes trip coil supervision with a trickle current range of 2 to 5 mA, and offers high accuracy underfrequency pickup, enhancing system stability and responsiveness.
