GE 531X175SSBAAM3 – Dual Channel Biu Series Six Interface Module

Model Number:531X175SSBAAM3

Channel Capacity:Dual

Series:Biu Series Six

Board Type:Interface Module

Application Category:GE Boards & Turbine Control

Connector Type:Right-angled Multi-Pin

Conductive Pads:36

Switch Type:Toggle

Indicator Color:Red

LED Configuration:Two

Edge Shape:Tabs

Solder Direction:Labeled Arrow

Drilled Corners:Factory Drilled

Chips Count:Forty-Seven

Chip Materials:Silicon or Conductive

Energy Storage Components:For Circuit Board Use

Operating Voltage Range:Not Specified

Output Frequency:Not Specified

Certification:Not Mentioned

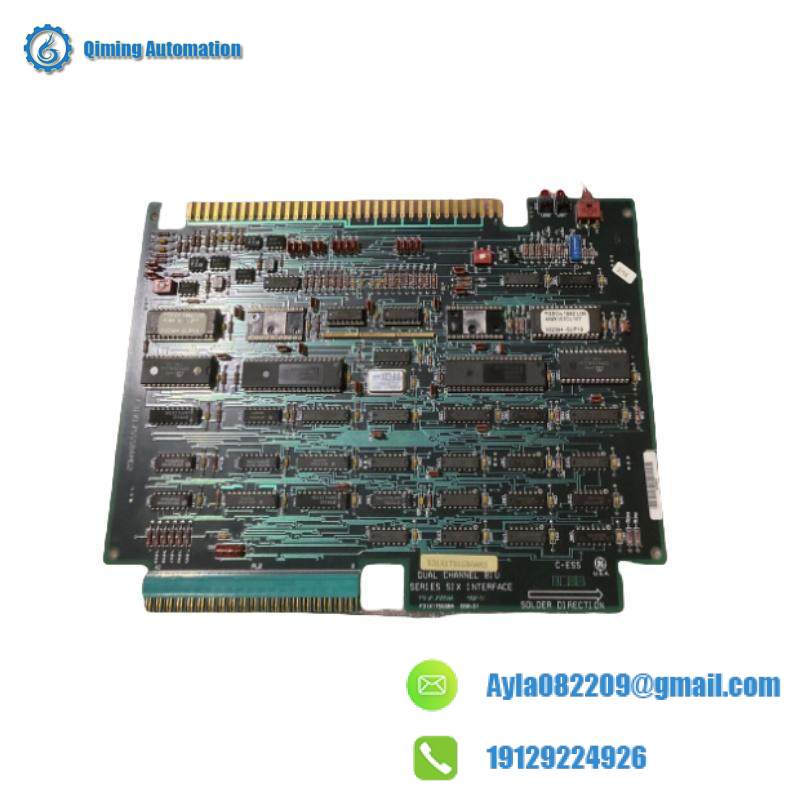

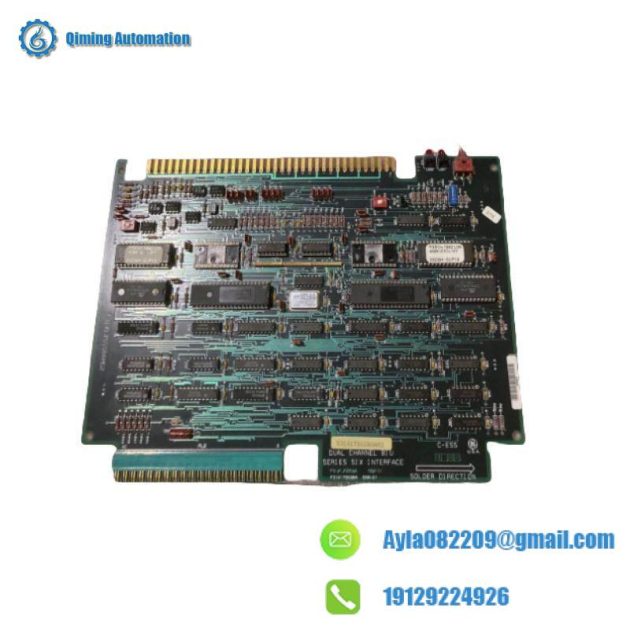

    The GE 531X175SSBAAM3 boasts a robust design, featuring a right-angled multi-pin connector at the bottom edge and 36 conductive copper pads extending from the top edge. The top edge includes a toggle switch and two red LED indicators, providing clear visual feedback on system status.

    This advanced interface board supports dual channels for enhanced data processing capacity, making it ideal for applications requiring high-speed, reliable data transfer in industrial settings. Its compact yet powerful structure ensures compatibility with a wide range of GE Boards & Turbine Control/531x Boards, maximizing its utility across various industrial projects.

    Crafted from high-quality materials, the board is designed for durability and long-term reliability, ensuring minimal downtime and optimal performance in challenging industrial environments. The inclusion of a toggle switch allows for easy configuration and control, further enhancing user convenience and operational flexibility.

    The GE 531X175SSBAAM3 comes equipped with a series of integrated circuits, each serving a specific function within the overall system architecture. These components are meticulously selected for their ability to handle complex data processing tasks efficiently, contributing to the overall robustness and adaptability of the interface.

    To ensure seamless integration and maintenance, the board features factory-drilled corners and is marked with a ‘Solder direction’ tab for proper assembly. This attention to detail facilitates quick and error-free installation, streamlining the setup process for end-users.
