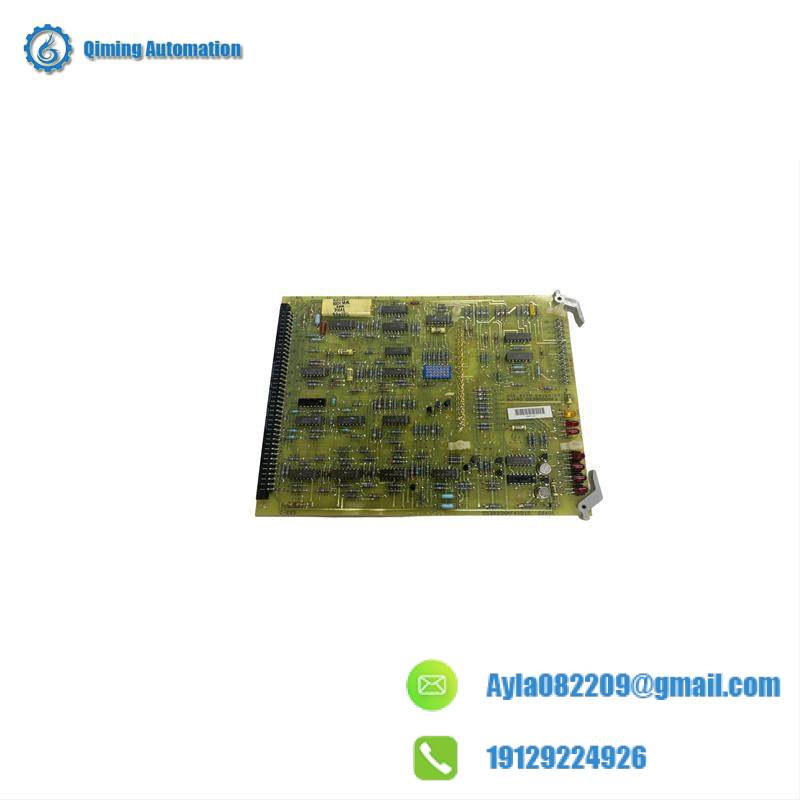

GE DS3800DOWA1A1A Circuit Card: High-Performance Control Module for Industrial Automation

Brand:GE

Model Number:DS3800DOWA1A1A

Type:Circuit Card

Module Type:PLC

Series:DS3800

Interface Protocol:Modbus RTU

Power Supply:DC 24V

Operating Temperature:-10°C to +60°C

Storage Temperature:-20°C to +80°C

Dimensions:W100mm x D100mm x H50mm

Weight:0.4kg

GE DS3800DOWA1A1A Digital Output Module: Detailed Overview

The GE DS3800DOWA1A1A is a digital output module designed for use in industrial automation and control systems, particularly within GE’s Mark series turbine control platforms (e.g., Mark IV, Mark V, or Mark VI). This module facilitates precise control of external devices by converting control signals from a PLC or controller into actionable outputs. Below is a comprehensive breakdown of its features, specifications, and applications.

1. Key Features

• High-Density Output Channels:
  Provides multiple digital output channels (exact count varies; typically 16–32 channels) to control relays, solenoids, actuators, and other field devices.
• Signal Isolation:
  Incorporates optical isolation to protect control circuits from voltage spikes and noise in industrial environments.
• Diagnostic Capabilities:
  Built-in fault detection for open-load, short-circuit, and over-temperature conditions.
• Hot-Swappable Design:
  Allows replacement without shutting down the entire system, minimizing downtime.
• Rugged Construction:
  Engineered to withstand harsh conditions, including temperature extremes, vibration, and electromagnetic interference (EMI).

2. Technical Specifications

• Input Control Voltage: 24V DC (typical for logic-side operation).
• Output Voltage Range: 24–120V DC or 48–240V AC (configurable based on application).
• Current Rating: 0.5–2A per channel (dependent on load type).
• Isolation Voltage: 1500–2500V AC (channel-to-logic isolation).
• Operating Temperature: -20°C to 70°C (-4°F to 158°F).
• Humidity Tolerance: Up to 95% non-condensing.
• Certifications: Complies with UL, CE, and IEC 61131 standards.

3. Applications

• Power Generation:
  Controls turbine auxiliaries (e.g., lubrication pumps, cooling fans, valve actuators) in gas/steam turbine systems.
• Industrial Automation:
  Manages conveyor systems, robotic arms, and assembly line equipment in manufacturing plants.
• Oil & Gas:
  Operates safety shutdown systems, pumps, and compressors in refineries and pipelines.
• Water Treatment:
  Controls chemical dosing systems, pumps, and filtration units.

4. Installation and Compatibility

• System Integration:
  Compatible with GE Mark IV/V/VI control racks and other GE drive systems. Installed in a dedicated slot within the chassis.
• Connector Types:
  Uses terminal blocks or high-density industrial connectors for field wiring.
• Configuration:
  Programmed via GE’s ToolboxST™ or CIMPLICITY® software to define output logic and fault handling.

5. Safety and Protection

• Short-Circuit Protection: Automatically disables affected channels during faults.
• Overload Indication: LED alerts for excessive current draw.
• Redundant Design: Optional redundancy configurations for critical systems.

6. Diagnostics and Maintenance

• Status Indicators:
  • Per-Channel LEDs: Green (active), Red (fault).
  • Module Health: System-level diagnostics via PLC/controller interface.
• Common Failures:
  • Burnt Outputs: Caused by overcurrent or inductive load spikes.
  • Connector Corrosion: Due to moisture or chemical exposure.
• Maintenance Tips:
  • Regularly inspect wiring integrity and terminal connections.
  • Test backup modules periodically in redundant setups.

7. Obsolescence and Replacement

• Legacy Status:
  Part of GE’s older Mark series platforms. For modern systems, consider Emerson’s PACSystems™ or Rx3i controllers with advanced I/O modules.
• Refurbished Options:
  Available through specialized industrial suppliers (e.g., Radwell, AX Control).

8. Ordering Information

• Model: DS3800DOWA1A1A
• Alternative Part Numbers: DS3800DOWA1A, DS3800DOWA1B (verify compatibility).
• Manufacturer: GE Industrial Systems (now part of Emerson Automation).
