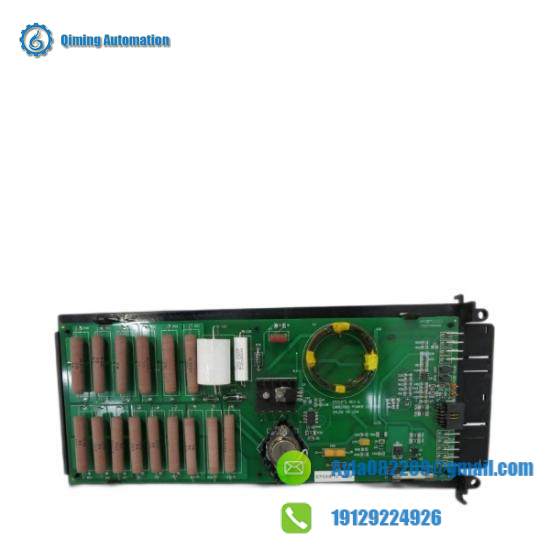

GE DS3800HPTK – Industrial Grade Gate Driver Card for Mark IV Speedtronic

Model:DS3800HPTK1H1K

Category:GE Boards & Turbine Control

Function:Gate driver

Series:Mark IV Speedtronic

Number of Long Grey Resistors:15

Resistance Range:18 Ohms ±5%

Power Rating:10 Watts

Number of Color-Banded Resistors:10

Type:Gate driver board

Number of Diodes:13

Capacitors Size:Varies

Fuse Type:Glass

LED Color:Red

Potentiometer Type:Small Blue

Installation Method:Two screw points and two plastic clips

    The GE DS3800HPTK Gate Driver Card is a precision-engineered solution for enhancing turbine control systems, ensuring reliable operation in demanding industrial environments.

    Featuring a robust set of components including resistors, diodes, capacitors, and an LED indicator, this card provides unparalleled performance for turbine control.

    Its compact yet sturdy design facilitates easy installation, requiring only two screw points and two plastic clips for a secure fit.

    Each part of the DS3800HPTK is meticulously labeled with a letter-number system, making identification and replacement straightforward.

    Manufactured by General Electric, this product embodies the company’s commitment to quality and reliability, backed by extensive experience in industrial automation.
