GE DS3820LIMA1 – Industrial Circuit Board, Optimized for GE Systems

Brand:General Electric

Model:DS3820LIMA1

Submodel:DS3820LIMA1B1B

Module Category:GE Boards & Turbine Control/Mark IV DS3800

Product Type:SpeedRegulator

Made In:USA

Dimensions:N/A

Weight:N/A

Port Configuration:Male Ports (1 white with 5 gold prongs, 1 black with 10 metal ports)

Resistor Count:6

Resistor Colors:Light Blue

Resistor Band Count:Up to 5

Terminal Count:12

Power Port:Red Tower

Connector Color:Blue

Circuit Board Material:Not specified

Application Compatibility:Mark VI Series

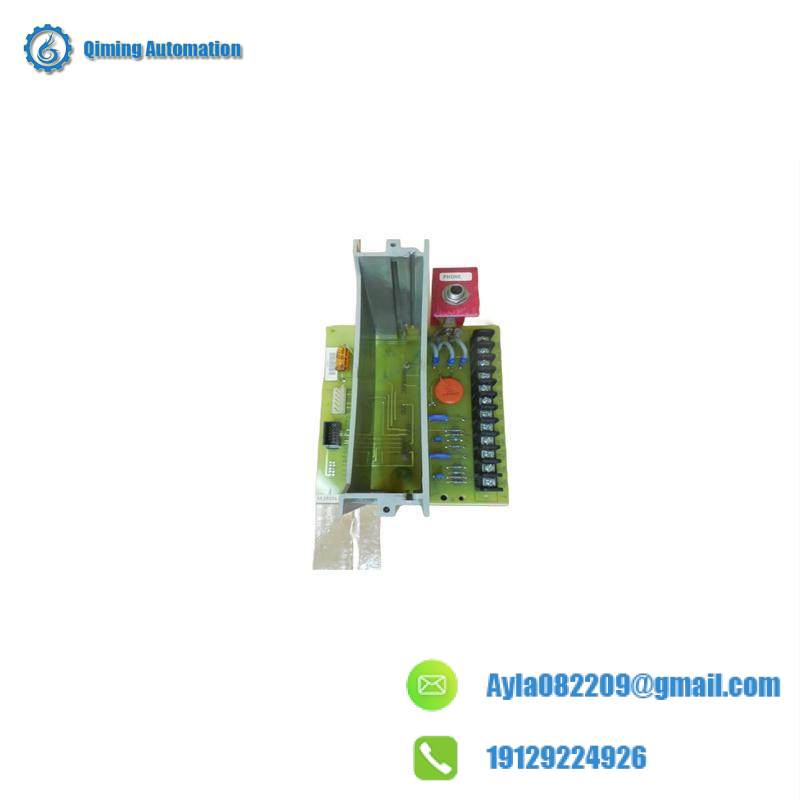

    The General Electric DS3820LIMA1 Circuit Board is meticulously engineered for optimal performance in industrial environments. Its compact design ensures minimal space consumption without compromising functionality.

    Each piece is uniquely identified with an alphanumeric code, guaranteeing traceability and easy identification. This feature is particularly valuable for maintenance and replacement purposes.

    Printed on the circuit board alongside the General Electric emblem is ‘DS3820LIMA’, indicating the model and further reinforcing brand trust. Below the emblem, the country of manufacture, USA, is clearly displayed, adding to the credibility of the product.

    The circuit board houses six light blue resistors, each equipped with up to five color bands. This allows for precise control over the amount of energy the resistors can restrict, enhancing the overall system’s accuracy and reliability.

    With one male port in white featuring five gold metal prongs and another in black with ten metal ports, the DS3820LIMA1 Circuit Board offers versatile connectivity options. The inclusion of a red tower with a power port, attached to metal bars with gold metal boxes, ensures secure and efficient power distribution.
