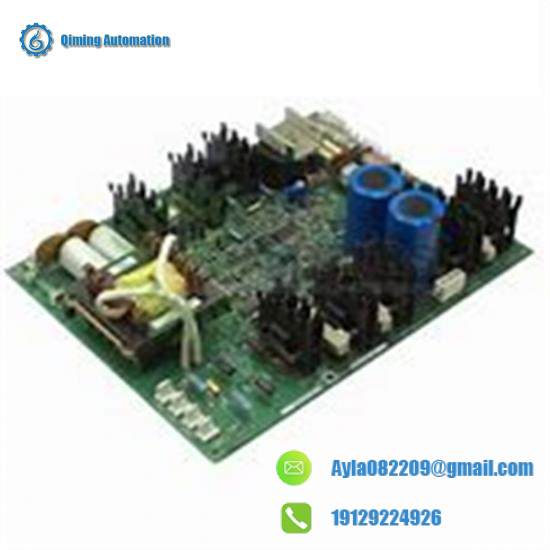

GE Fanuc DS200GDPAG1AEB | High-Power Speedtronic DS200 25KHz Gate Driver

Model Number:DS200GDPAG1AEB

Type:Gate Driver Power Module

Frequency:25KHz

Input Voltage Range:120-277VAC

Output Current:Continuous 5A Peak 10A

Operating Temperature:-20°C to +70°C

Package Size:115mm x 95mm x 55mm

Weight:1.5kg

Certifications:UL, CE, ISO 9001:2015

GE Fanuc DS200GDPAG1AEB Drive Board: Detailed Overview

The GE Fanuc DS200GDPAG1AEB is a drive control board designed for use in GE’s Mark V and Mark VI gas/steam turbine control systems. This critical component ensures precise motor control and power management in industrial and energy generation applications. As part of GE’s legacy drive systems (now under Emerson Automation), it is widely used in high-reliability environments demanding robust performance. Below is a comprehensive breakdown of its features, specifications, and applications.

1. Key Features

• Motor Control:
  Provides advanced control for AC/DC motors, enabling precise speed and torque regulation in turbine systems.
• Input/Output Integration:
  Interfaces with sensors, encoders, and feedback devices to monitor and adjust motor performance.
• Fault Diagnostics:
  Built-in diagnostics for real-time monitoring of overcurrent, overtemperature, and voltage anomalies.
• Modular Design:
  Compatible with GE’s Mark series drive cabinets, allowing easy replacement and upgrades.
• High Durability:
  Engineered for harsh industrial environments with resistance to vibration, dust, and temperature extremes.

2. Technical Specifications

• Input Voltage:
  Supports 120V AC/DC or 240V AC/DC (configuration-dependent).
• Output Control:
  Delivers pulse-width modulation (PWM) signals to drive IGBTs or thyristors in power stages.
• Communication Protocols:
  Integrates with GE’s Speedtronic™ control systems via analog/digital I/O and proprietary communication links.
• Operating Temperature: -20°C to 65°C (-4°F to 149°F).
• Humidity Tolerance: Up to 95% non-condensing.
• Certifications: Complies with UL, CE, and IEEE industrial standards.

3. Applications

• Power Generation:
  Controls gas/steam turbine auxiliaries (e.g., lubrication pumps, cooling fans).
• Oil & Gas:
  Manages compressors, pumps, and valves in pipeline and refining operations.
• Industrial Drives:
  Used in heavy machinery, conveyor systems, and extruders requiring precise motor control.

4. Installation and Compatibility

• System Integration:
  Installed in Mark V/Mark VI drive cabinets; compatible with DS200-series drive boards (e.g., DS200DCFBG1, DS200TCPSG1).
• Connector Types:
  Uses high-reliability industrial connectors for signal and power interfaces.
• Configuration:
  Requires setup via GE’s ToolboxST™ software for parameterization and calibration.

5. Safety and Protection

• Overcurrent Protection: Triggers shutdown during excessive current draw.
• Thermal Monitoring: Detects overheating in power components.
• Isolation Barriers: Protects low-voltage control circuits from high-voltage surges.

6. Diagnostics and Maintenance

• LED Indicators:
  • RUN/STATUS: Green/red LEDs for operational/fault states.
  • COMMS: Indicates communication activity with turbine control systems.
• Common Failures:
  • Capacitor Degradation: Check for bulging or leakage in electrolytic capacitors.
  • Solder Joint Cracks: Inspect under high-vibration conditions.
• Preventive Measures:
  • Regularly clean dust/debris from heatsinks and fans.
  • Verify firmware updates via Emerson/GE support channels.

7. Obsolescence and Replacement

• Legacy Status:
  Part of GE’s discontinued Mark V/VI systems. For newer installations, consider Emerson’s Mark VIe or Mark VIIe platforms.
• Repair/Refurbishment:
  Available through specialized industrial electronics vendors (e.g., ABS Surplus, Radwell).

8. Ordering Information

• Model: DS200GDPAG1AEB
• Alternative Part Numbers: DS200GDPAG1A, DS200GDPAG1B (check compatibility).
• Manufacturer: GE Industrial Systems (now Emerson Automation).
