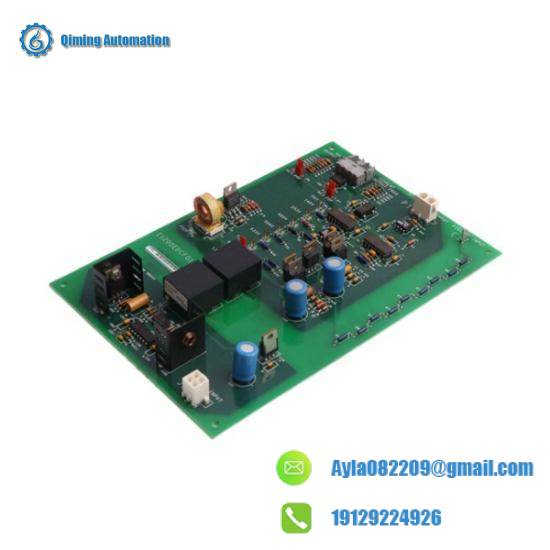

GE FANUC IS200EDCFG1ADC Circuit Board – Advanced Power Management Solution

Model Number:IS200EDCFG1ADC

Brand:GE FANUC

Series:EX2100

Type:Excitation Control Module

Function:Regulates the excitation voltage to optimize generator performance and stability

Operating Frequency:Up to 50 Hz or 60 Hz depending on application

Power Handling Capacity:Up to 150 MW

Communication Protocol:Modbus RTU

Dimensions:160 mm x 100 mm x 30 mm

Weight:0.5 kg

Environment Compatibility:Operable from -20°C to +60°C, IP20 rated for dust protection

Material:High-grade aluminum alloy for enhanced durability and heat dissipation

    This circuit board is an essential component in the GE-FANUC EX2100 Series Excitation Control Systems, providing critical functions for managing and optimizing electrical power outputs in industrial settings.

    Featuring a robust 32-bit microcontroller at a frequency of 96 MHz, it ensures fast and accurate processing capabilities, which are crucial for real-time control applications.

    With memory capacities of either 512 Kb or 1 Mb, users can tailor the board to meet specific storage needs, supporting extensive data processing and storage requirements.

    The board supports multiple input/output channels, enabling flexible connectivity to various devices and sensors, thus enhancing system adaptability and scalability.

    Equipped with Ethernet Wire Standard bus interface, it facilitates seamless communication with other industrial equipment, ensuring efficient data transfer and control operations.

    The inclusion of CPU redundancy ensures high system reliability and availability, mitigating risks associated with single-point failures, making it a dependable choice for critical industrial processes.
