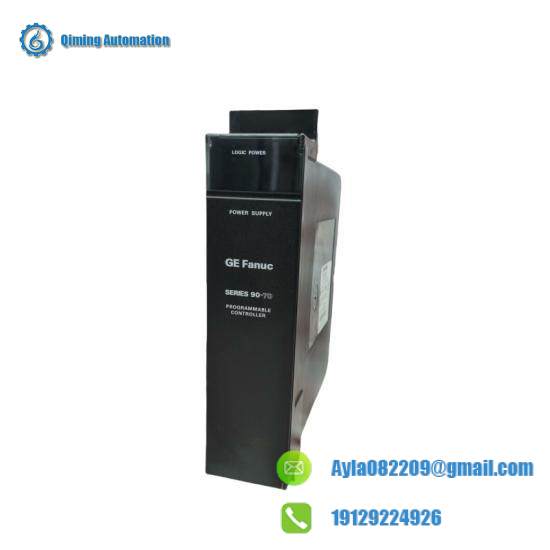

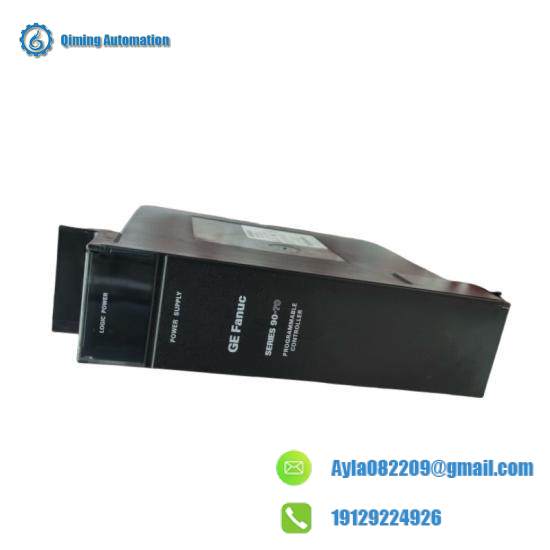

GE IC697PWR711 Power Supply Module: Detailed Overview

The GE IC697PWR711 is a power supply module designed for use within the GE Series 90-70 Programmable Logic Controller (PLC) system. This module is part of GE Fanuc’s (now part of Emerson Automation) legacy industrial automation product line, providing reliable power distribution to support critical control systems in industrial environments. Below is a comprehensive overview of its features, specifications, and applications.

1. Key Features

• Input Voltage Compatibility:
  The IC697PWR711 typically accepts a 24V DC input, though specific configurations may vary. Always verify the input requirements based on system requirements.
• Output Power:
  Delivers regulated 5V DC output to power the PLC’s backplane and connected modules (e.g., CPU, I/O modules).
• High Reliability:
  Designed for industrial environments with robust protection against voltage fluctuations, surges, and electromagnetic interference (EMI).
• LED Status Indicators:
  Includes diagnostic LEDs to monitor power status, faults, or overload conditions.
• Compact Design:
  Fits into the Series 90-70 rack system, ensuring seamless integration with other PLC components.

2. Technical Specifications

• Input Voltage: 24V DC (±10% tolerance).
• Output Voltage: 5V DC (regulated for stability).
• Output Current: Up to 10A (supports high-density configurations).
• Power Rating: Approximately 50W (dependent on load conditions).
• Operating Temperature: 0°C to 60°C (32°F to 140°F).
• Storage Temperature: -40°C to 85°C (-40°F to 185°F).
• Humidity: 5% to 95% non-condensing.
• Safety Certifications: Complies with UL, CE, and IEC standards for industrial equipment.

3. Installation and Compatibility

• Rack Compatibility:
  Designed for use in Series 90-70 PLC racks. Occupies one slot in the rack assembly.
• Hot-Swappable:
  Some configurations allow hot-swapping, minimizing downtime during maintenance (verify system compatibility).
• Backplane Integration:
  Connects directly to the rack’s backplane to distribute power to all installed modules.

4. Applications

The IC697PWR711 is deployed in industrial automation systems requiring stable and fault-tolerant power, including:

• Manufacturing: Assembly lines, robotics, and process control.
• Energy: Power generation, distribution, and substation automation.
• Transportation: Rail signaling, conveyor systems.
• Water/Wastewater: Pump control and monitoring systems.

5. Safety and Protection

• Overload Protection: Automatically shuts down during excessive current draw.
• Short-Circuit Protection: Safeguards against damage from output shorts.
• Reverse Polarity Protection: Prevents damage from incorrect DC input wiring.

6. Maintenance and Troubleshooting

• Diagnostic LEDs:
  • PWR OK: Green LED indicates normal operation.
  • FAULT: Red LED alerts to issues like over-temperature or voltage drop.
• Preventive Measures:
  • Ensure proper ventilation to avoid overheating.
  • Regularly check input voltage stability and connections.

7. Notes on Obsolescence

• The Series 90-70 platform is considered legacy technology. For modern applications, consider migrating to Emerson’s RX3i or RX7i PACSystems, which offer enhanced performance and support.
• Replacement parts may require sourcing through specialized industrial automation suppliers.

8. Ordering Information

• Model: IC697PWR711
• Manufacturer Part Number: Check with suppliers for availability.
• Alternative/Equivalent: Verify compatibility with other Series 90-70 power supplies (e.g., IC697PWR710).
