Application Type:Gate Drive Amplifier
Board Type:Interface Board
Frame Size:620
Voltage Level:Low Voltage
Number of Modules Supported:2 (upper and lower)
Power Supply Compatibility:General Electric’s Mark VI Speedtronic systems
Manufactured By:General Electric
Model Designation:IS200DAMAG1ACA
Weight:Not specified
Dimensions:Not specified
Operating Temperature Range:-40°C to +85°C
Certifications:UL, CE, ISO 9001

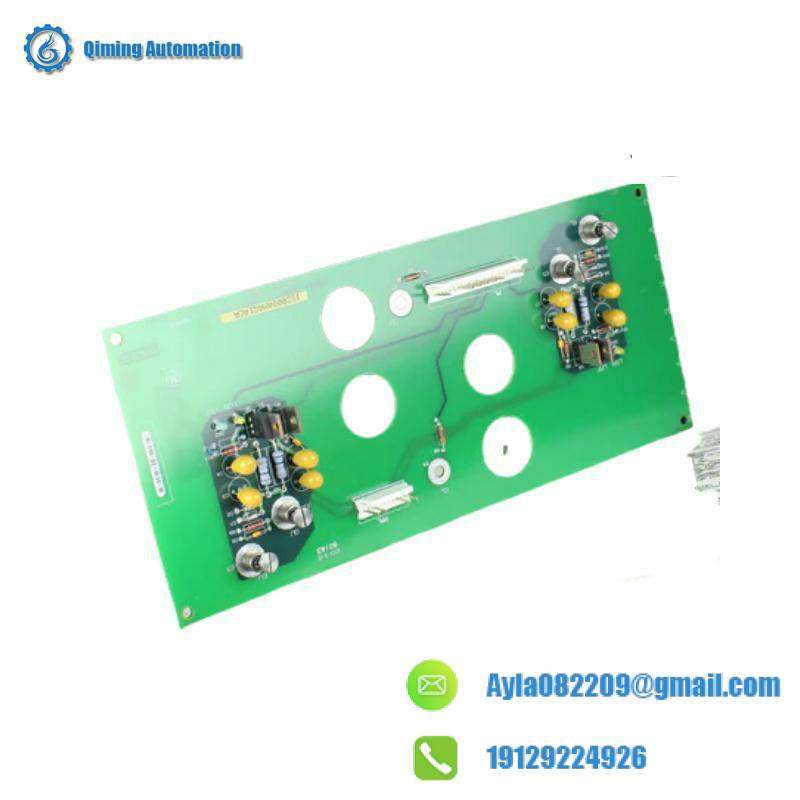

Crafted specifically for integration into GE‘s Innovation Series drives, the IS200DAMAG1ACA amplifies gate signals with precision, enhancing the performance of gas and steam turbines.
It seamlessly connects to a single IGBT module each for the upper and lower phase legs, utilizing CM1000HA-28H Powerrex IGBTs for reliable power handling.
Designed for direct connection to the Bridge Personality Interface board, it ensures efficient signal transmission, improving the overall control accuracy and system stability.
Withstanding a wide operating temperature range from -40°C to +85°C, the IS200DAMAG1ACA is engineered for robust performance under diverse environmental conditions.
Backed by comprehensive certifications including UL, CE, and ISO 9001, this product meets stringent international safety and quality standards, providing peace of mind for users.
