Operating Voltage Range:100V – 500V DC
Frequency Range:48Hz – 62Hz
Input Current:0A – 10A
Output Current:0.5mA – 20mA
Protection Modes:[“Overcurrent”,”Underfrequency”,”Overvoltage”,”Undervoltage”]
Relay Rating:250VAC/3A, 125VAC/6A
Protection Levels:30 stages of overcurrent and 25 stages of underfrequency protection

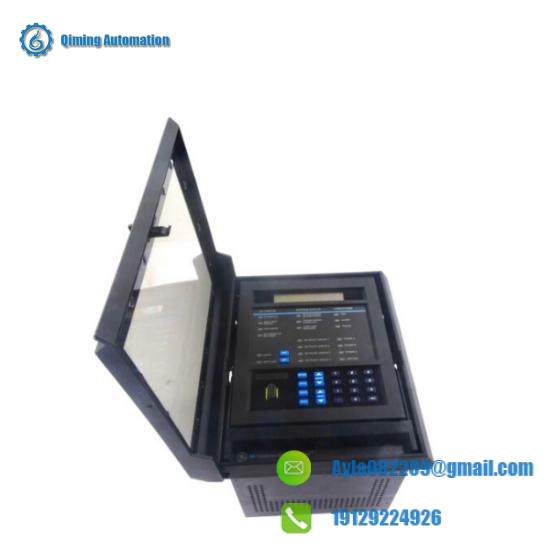

The GE SR745-W2-P5-G5-HI-A-R-T Relay is a key component in transformer protection systems, designed to provide comprehensive monitoring and control. Its advanced adaptive features enable real-time response to system events, enhancing the operational efficiency and safety of industrial power systems.
Featuring a large, enhanced 40 character display and an expanded keypad, this relay simplifies manual entry of setpoints and offers immediate alerts through its LED indicators, ensuring quick and accurate status monitoring.
Engineered for durability and performance, the relay boasts a robust case measuring 9” in height, 7” in width, and 7 ⅛” in depth, designed to fit seamlessly into standard 19” panel configurations. It supports transformer management, overexcitation protection, and frequency rate-of-change detection, crucial for maintaining optimal operation.
This relay includes an optional general-purpose transducer input, allowing for the monitoring of a user-defined quantity. This feature enhances the relay’s functionality, enabling more customized protection settings tailored to specific industrial needs.
With its proven reliability and advanced technology, the GE SR745-W2-P5-G5-HI-A-R-T Relay is a trusted choice for industries requiring high-level transformer protection, ensuring uninterrupted power supply and operational safety.
