GE VSV0 H1B IS200VSVOH1BED Control Board: Powering Precision in Industrial Control

Functional Acronym:VSVO

Functional Description:VME Servo Board

Functional Revision:1 B

PCB Coating:Conformal Coating

Artwork Revision😀

Manufactured By:General Electric

Series:Mark VI Speedtronic

Part Number:IS200VSVOH1BED

Core Components:[“Resistors”,”Capacitors”,”TP Test Points”,”Inductor Beads”,”Integrated Circuits”]

Connectors:[“Two Backplanes (P1/P2)”,”Four Conductive Traces Connectors (P3-P6)”,”Relays (K1-K4)”]

    The GE VSV0 H1B IS200VSVOH1BED Control Board is a critical component in the industrial control system, specifically designed for the robust management of gas and steam turbines. Its conformal coating ensures durability and protection against environmental hazards.

    Featuring a VME servo board architecture, it supports seamless integration with the Mark VI system, offering advanced control functionalities and enhanced operational reliability.

    With six connectors, including two backplanes and four conductive trace connections, the board facilitates flexible and efficient data exchange, optimizing the overall performance of your industrial machinery.

    Equipped with four relays (K1 through K4) and over seventy integrated circuits, this control board ensures precise control signals and enhanced system responsiveness, enabling smooth operation and maintenance.

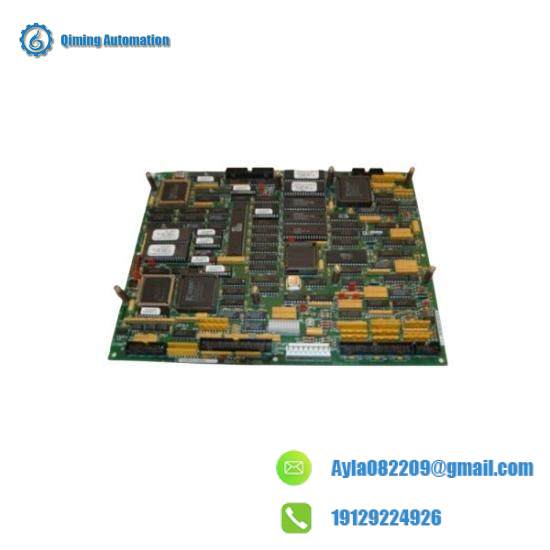

    The detailed diagram and markings on the top surface provide clear guidance for assembly and troubleshooting, ensuring ease of use and minimizing downtime in your operations.
