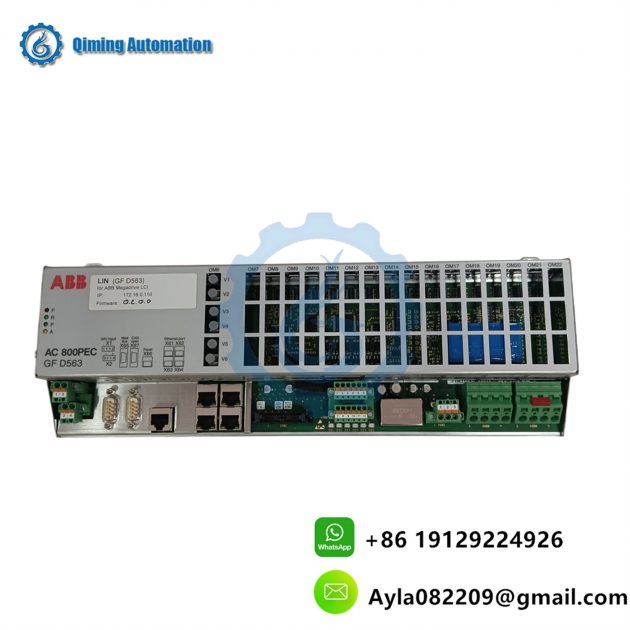

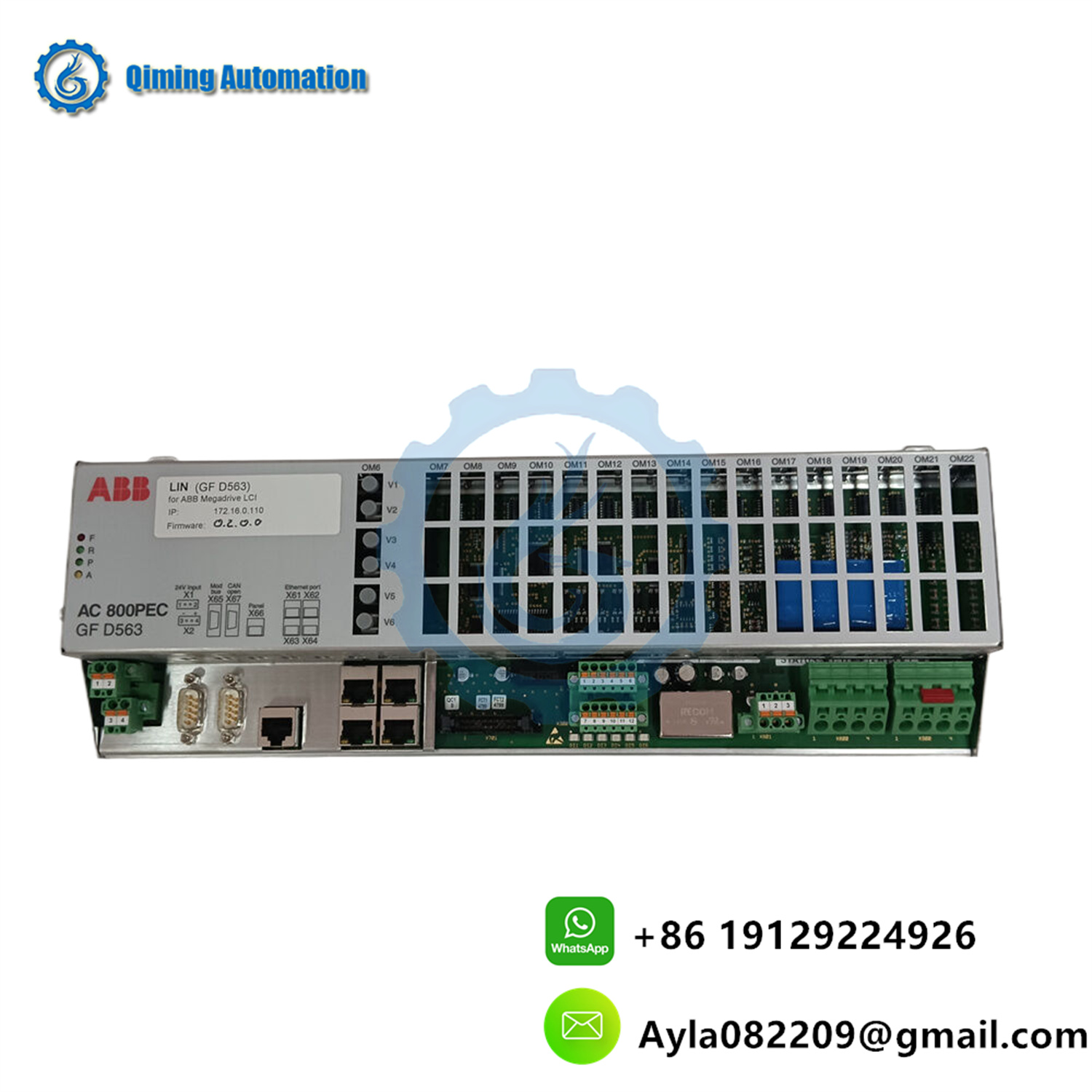

ABB GFD563A101 3BHE046836R0101 Product Introduction
Product Description
The ABB GFD563A101 3BHE046836R0101 is a high – performance and reliable control module, mainly applied in industrial automation systems. It is designed to accurately monitor and control various equipment and processes, ensuring the stable and efficient operation of the entire system. With advanced technology and robust structure, it can adapt to harsh industrial environments and meet the strict requirements of different industrial fields for control accuracy and reliability.
Technical Parameters
- Operating Voltage: 24 V DC ± 10%, providing stable power supply for the module.
- Operating Current: ≤ 500 mA, ensuring low power consumption during operation.
- Input Signals: Supports 8 – channel analog input (4 – 20 mA), enabling accurate collection of various analog parameters.
- Output Signals: Equipped with 4 – channel relay output (normally open, 5 A / 250 V AC), facilitating control of external equipment.
- Operating Temperature Range: – 10 ~ 60 °C, suitable for most industrial working environments.
- Storage Temperature Range: – 25 ~ 70 °C, ensuring good performance during storage.
- Relative Humidity: 5% ~ 95% (non – condensing), adapting to different humidity conditions.
- Protection Level: IP20, providing basic protection against dust and foreign objects.
- Dimensions (L × W × H): 120 mm × 80 mm × 60 mm, with a compact size for easy installation in control cabinets.
- Weight: Approximately 200 g, lightweight and convenient for handling and installation.
- Communication Interface: RS485, supporting Modbus RTU protocol for convenient data exchange with other devices in the system.
- MTBF (Mean Time Between Failures): ≥ 100,000 hours, indicating high reliability and long service life.
