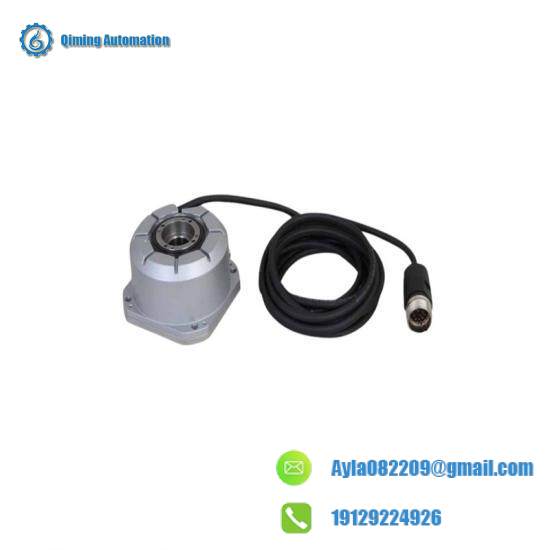

Heidenhain RCN 223 Encoder, 16384 Counts, Model 03S17-0D, Positional Accuracy Module

Type:Absolute Incremental Encoder

Resolution:16384 P/R

Rotation Angle:Full 360°

Operating Temperature:-20°C to +85°C

Power Consumption:Max. 2.5 W

Connectivity:2-wire, TTL level

Enclosure:IP65

Mounting:M12 thread

    Introducing the Heidenhain RCN 223 encoder, the pinnacle of precision measurement technology. Engineered to deliver unparalleled accuracy and reliability in demanding industrial environments, this encoder is the go-to choice for applications requiring exceptional performance.

    Featuring a resolution of 16384 positions per revolution, it ensures precise tracking and positioning, making it indispensable for high-precision machinery and automation systems. With an operating temperature range from -25°C to +85°C, it withstands harsh conditions without compromising on performance.

    Equipped with TTL quadrature signal output, the RCN 223 encoder seamlessly integrates with modern control systems, providing reliable feedback essential for smooth operation. Its IP65 enclosure type ensures protection against dust and water, guaranteeing longevity and robustness in various industrial settings.

    Designed for single-axis applications, this encoder offers compatibility with a wide array of machines and automation solutions, enhancing their efficiency and accuracy. Its compact size and versatile mounting options make it adaptable to diverse installation requirements, ensuring seamless integration into existing systems.

    Backed by Heidenhain’s commitment to quality and innovation, the RCN 223 encoder is supported by comprehensive technical documentation and customer service. This ensures easy setup, maintenance, and optimal performance, setting new standards for precision measurement in industrial automation.
