Number of Channels:32
Operating Voltage:10.5 to 32 VDC
Peak Voltage:32 VDC
Maximum Load Current:0.5 A per point, 6 A max per channel group, 12 A max per module, resistive load 0.25 A per point incandescent lamp load
Operating Temperature Range:-20°C to +60°C
Storage Temperature Range:-40°C to +85°C
Power Consumption:Max 500 mA at 24 VDC
Dimensions:125 mm x 85 mm x 35 mm
Weight:0.3 kg
Material:Ruggedized, IP66 certified, anti-corrosive housing

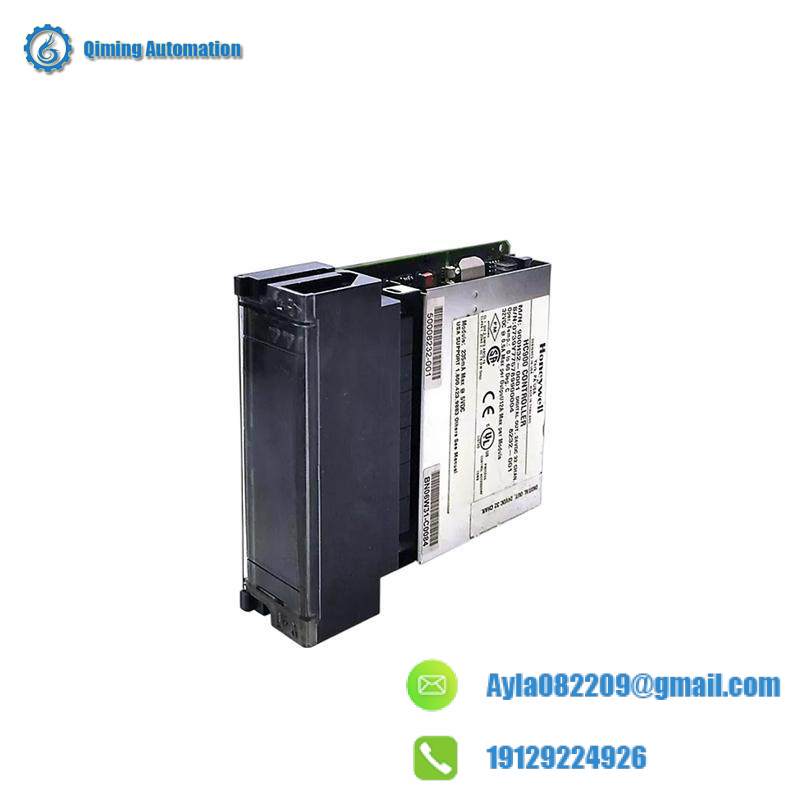

Designed with industrial-grade materials, the Honeywell 900H32-0302 ensures reliability and longevity in harsh environmental conditions.
Each of the 32 digital outputs can be programmed independently to meet diverse automation needs, enhancing operational flexibility and efficiency.
The built-in LED board indicator provides immediate visual feedback on the status of each output, facilitating quick troubleshooting and maintenance.
With a peak voltage of 32 VDC and a maximum load current of 6 A per channel group, this card supports a wide range of industrial applications without overloading.
Ideal for integrating into PLC systems across textile, printing, rubber and plastics, and woodworking industries, it offers seamless compatibility and enhanced productivity.
