Operating Range:0-500 psi, 0-35 bar
Accuracy:±0.1% of F.S.
Repeatability:±0.05% of F.S.
Power Consumption:≤ 12W
Operating Temperature:-40°C to +70°C
Storage Temperature:-50°C to +85°C
Pressure Connection:BSP G1/2
Electrical Connection:3-pin HART, 4-pin Fieldbus
Process Connection:Stainless Steel
Protection Class:IP67/IP68
Compliance Standards:ANSI/NFPA 70-202, ANSI/ISA 12.27.0, SIL 2/3

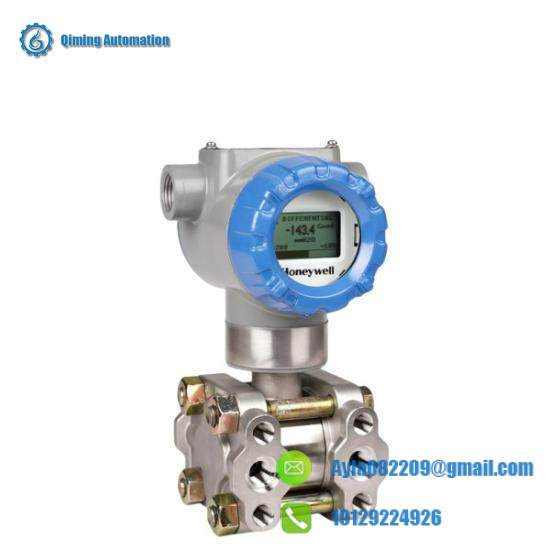

The Honeywell STD810-E1AC4AS-1-A-BHB-11S-B-10A0-00-0000 is engineered with precision and reliability, making it an ideal choice for industrial applications requiring accurate differential pressure measurements. This transmitter features a comprehensive on-board diagnostic system, enabling users to monitor and maintain optimal performance.
Built with a modular design, it allows for easy integration into existing systems, ensuring seamless operation within complex industrial environments. The transmitter’s integral dual seal design guarantees highest safety standards, complying with ANSI/NFPA 70-202 and ANSI/ISA 12.27.0 guidelines, thereby protecting against hazardous leaks.
World-class overpressure protection ensures the longevity and safety of the device, while full compliance with SIL 2/3 requirements confirms its suitability for safety-critical applications. The added feature of polarity-insensitive electrical connections ensures reliable operation regardless of signal polarity, enhancing operational flexibility.
For extended peace of mind, the STD810-E1AC4AS-1-A-BHB-11S-B-10A0-00-0000 comes with an optional 15-year warranty, offering extended coverage beyond standard guarantees. Additionally, the Plugged Impulse Line Detection Option provides early warnings of potential issues, allowing for timely maintenance.
The transmitter supports both dual and triple calibration options (HART & Fieldbus), enabling precise adjustments according to specific application needs. This flexibility, combined with its robust design, makes the Honeywell STD810-E1AC4AS-1-A-BHB-11S-B-10A0-00-0000 a versatile and reliable solution for a wide range of industrial control scenarios.
