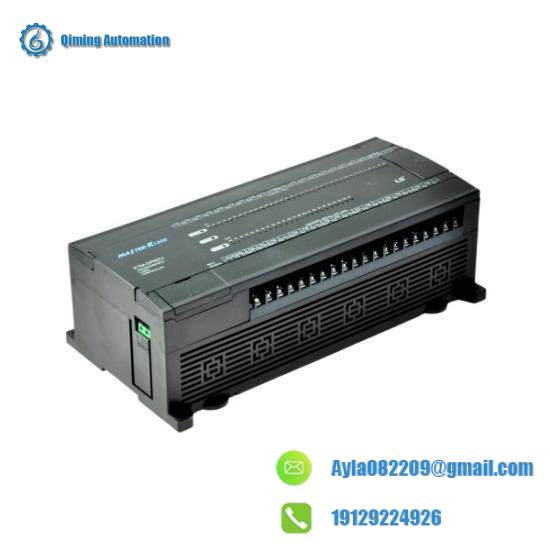

LS K7M-DR60U Programmable Logic Controller

Input Specification:36 input points, supporting DC 24V with a rated input current of 7mA (standard type: P0~P3 [9mA], economic type: P0~P1 [9mA])

Operating Voltage Range:DC20.4V~28.8V with a ripple rate less than 5%

Output Specification:24 output points with a rated load voltage/current of DC24V/2A (resistive load), AC220V/2A (COS∅=1)/point, and 5A/COM

Power Consumption:Less than 1W

Environmental Conditions:Operating temperature from 0°C to +55°C, storage temperature from -20°C to +70°C

Dimensions:138mm x 106mm x 85mm

Weight:Approximately 0.4kg

    Engineered with precision and reliability, the LS K7M-DR60U PLC is designed to meet the stringent demands of modern industrial environments. This compact controller packs an impressive array of features, including 36 programmable input points that can be tailored to monitor various physical conditions, ensuring seamless integration with existing systems.

    With a robust operating voltage range of DC20.4V~28.8V, the PLC ensures reliable performance across a wide spectrum of industrial settings. Its 24 programmable output points, capable of handling both resistive and AC loads, provide flexible control options for a multitude of applications.

    Noteworthy for its versatile connectivity, the K7M-DR60U includes integrated high-speed inputs, facilitating the capture of critical data swiftly and accurately. It also supports pulse outputs, enabling precise control over actuators and other mechanical devices. Additionally, it offers thermocouple and RTD temperature inputs, making it ideal for applications requiring temperature monitoring and control.

    The PLC’s modular design allows for easy expansion through four optional slot cards, providing a scalable solution for growing needs. Integrated multiple communication ports enable seamless connection to other devices and systems, enhancing operational efficiency and data exchange capabilities.

    Manufactured using high-quality materials and advanced engineering techniques, the LS K7M-DR60U PLC is built to withstand harsh industrial environments, offering a reliable choice for continuous operation. Its intuitive programming interface and user-friendly design make it accessible to a broad range of users, from experienced engineers to those new to PLC programming.
