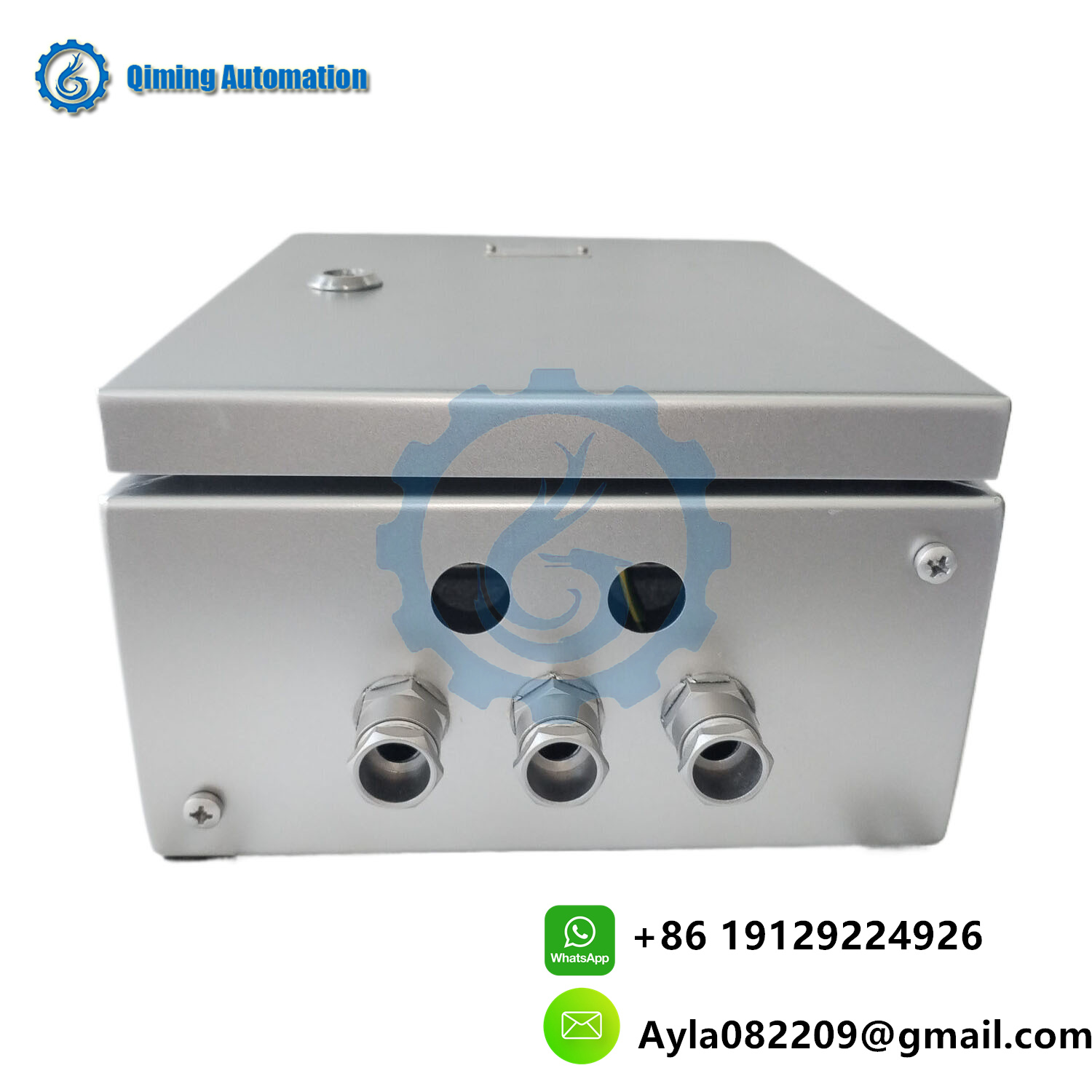

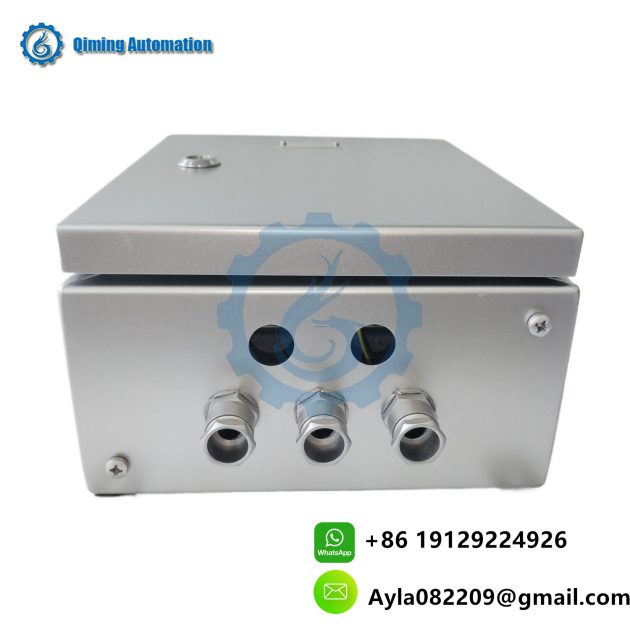

ABB PFVO142 3BSE023732R0001 Product Introduction
Product Description
The ABB PFVO142 3BSE023732R0001 is a high-precision frequency converter module, specifically designed to regulate the speed of AC motors in industrial automation systems. It converts fixed-frequency AC power into variable-frequency power, allowing precise control of motor speed, torque, and acceleration—key factors in optimizing energy efficiency and process performance. This module is widely used in industries such as manufacturing, material handling, pumping systems, and conveyor lines, where adjustable motor operation is essential for matching production demands, reducing energy consumption, and extending equipment lifespan. With its advanced control algorithms and robust design, it ensures smooth motor operation even under varying loads, while its built-in protection features (such as overcurrent, overvoltage, and thermal protection) enhance system reliability in harsh industrial environments.
Technical Parameters
- Input Voltage: 3-phase, 380 ~ 480 V AC ± 10%, 50/60 Hz, compatible with standard industrial power grids.
- Output Voltage: 3-phase, 0 ~ input voltage, variable frequency (0 ~ 500 Hz), enabling precise speed control.
- Rated Output Current: 14 A, suitable for motors up to 7.5 kW (at 400 V AC).
- Efficiency: ≥ 97% at full load, ensuring energy-efficient operation.
- Control Modes: V/f control, vector control (sensorless), supporting both simple and high-performance motor control.
- Speed Regulation Accuracy: ±0.5% of rated speed (sensorless vector mode), ensuring precise speed stability.
- Acceleration/Deceleration Time: 0.1 ~ 3600 s (adjustable), adapting to different load requirements.
- Operating Voltage (Control Circuit): 24 V DC ± 10%, compatible with industrial control systems.
- Power Consumption (Control Circuit): Typical 15 W, minimizing auxiliary power usage.
- Operating Temperature Range: -10 ~ 50 °C (with derating above 40 °C), suitable for industrial environments.
- Storage Temperature Range: -40 ~ 70 °C, maintaining integrity during storage and transportation.
- Relative Humidity: 5% ~ 95% (non-condensing), resistant to moisture-related issues.
- Protection Features: Overcurrent, overvoltage, undervoltage, overheating, short-circuit, and motor overload protection.
- Dimensions (L × W × H): 180 mm × 120 mm × 150 mm, compact for installation in control cabinets.
- Weight: Approximately 2.5 kg, lightweight for convenient mounting.
- Mounting Type: Flange or panel mounting, offering flexible installation options.
- Communication Interface: RS485 port (Modbus RTU), enabling integration with PLCs and SCADA systems.
- Certifications: CE, UL, RoHS, meeting international safety and environmental standards.
The ABB PFVO142 3BSE023732R0001 is available for global sale, covering all major industrial regions. Orders are processed promptly, with delivery guaranteed within 3 days, ensuring quick integration into your motor control systems to minimize operational delays.
