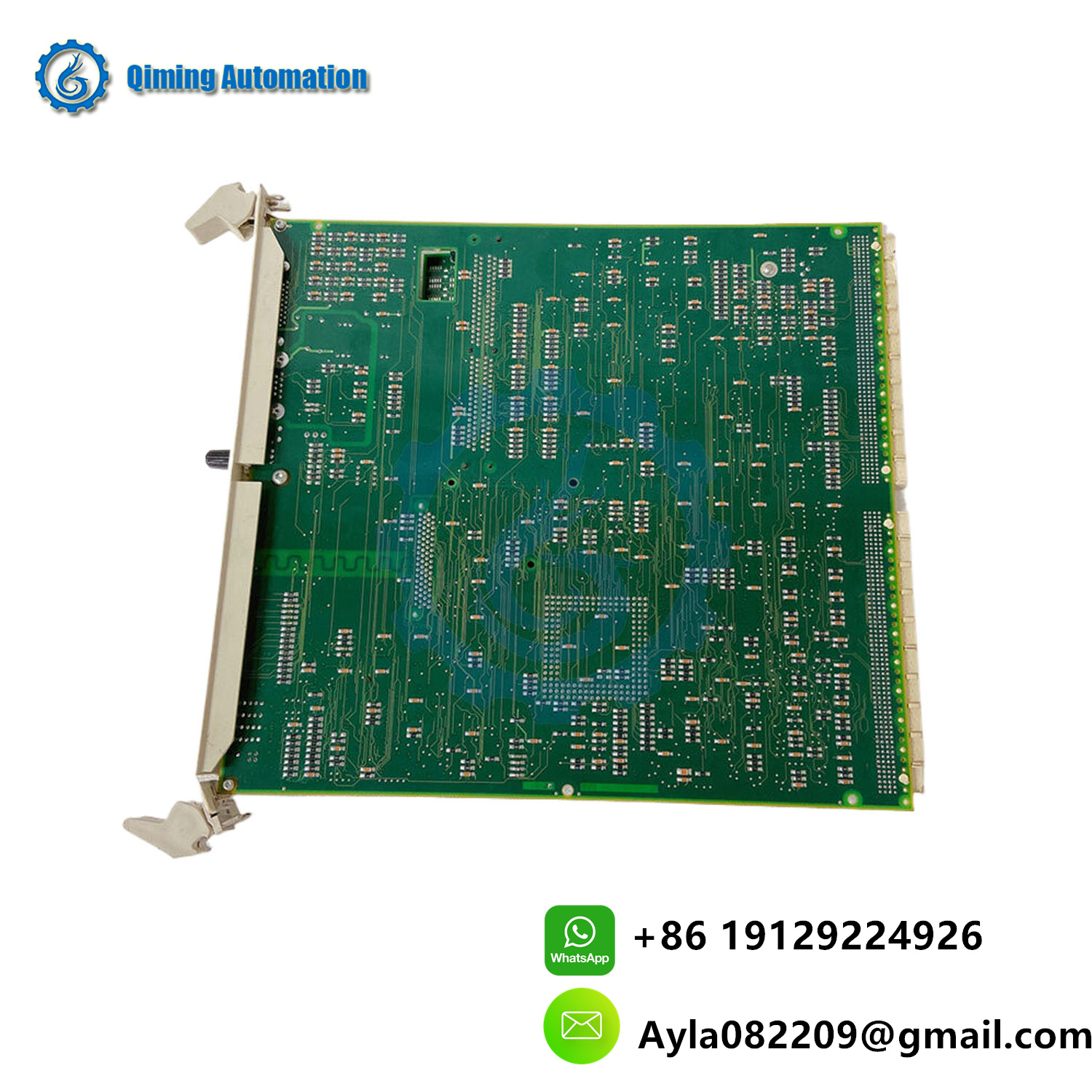

ABB PM511V08 3BSE011180R1 Product Introduction
Product Description
The ABB PM511V08 3BSE011180R1 is a compact yet powerful programmable logic controller (PLC) module, designed to serve as the core of small to medium-sized industrial automation systems. It specializes in executing control logic, processing real-time data from connected sensors and actuators, and coordinating simple to moderately complex industrial processes. This module is widely used in industries such as packaging, material handling, small-scale manufacturing, and building automation, where reliable control of machinery and processes is essential for maintaining operational efficiency and product consistency. With its user-friendly programming interface and versatile I/O capabilities, it offers easy integration into existing systems, while its robust design ensures stable performance in typical industrial environments with moderate electrical noise and temperature variations.
Technical Parameters
- Processor: 32-bit microcontroller with a clock speed of 400 MHz, ensuring efficient execution of control programs.
- Memory: 64 MB RAM and 128 MB flash memory, providing sufficient space for program storage and data logging.
- Operating Voltage: 24 V DC ± 10%, compatible with standard industrial power supply systems.
- Power Consumption: Typical 10 W, ensuring energy-efficient operation.
- I/O Capacity: Up to 512 digital inputs/outputs and 64 analog inputs/outputs (expandable via additional modules).
- Communication Interfaces: 1 x Ethernet port (10/100 Mbps), 1 x RS485 port, supporting protocols such as Modbus TCP/IP and Modbus RTU for data exchange.
- Execution Speed: 0.1 μs per boolean instruction, ensuring responsive control of dynamic processes.
- Operating Temperature Range: 0 ~ 60 °C, suitable for standard industrial working environments.
- Storage Temperature Range: -40 ~ 85 °C, maintaining integrity during storage and transportation.
- Relative Humidity: 5% ~ 95% (non-condensing), resistant to moisture-related issues.
- Dimensions (L × W × H): 120 mm × 80 mm × 60 mm, compact for space-constrained installations.
- Weight: Approximately 250 g, lightweight for easy handling and mounting.
- Mounting Type: DIN rail mounting, compatible with standard industrial mounting systems.
- Programming Software: Compatible with ABB’s AC 800M Control Builder, enabling intuitive logic development.
- Certifications: CE, UL, ensuring compliance with international safety and quality standards.
The ABB PM511V08 3BSE011180R1 is available for global sale, covering all major industrial regions. Orders are processed promptly, with delivery guaranteed within 3 days, ensuring quick integration into your automation systems to minimize operational delays.
