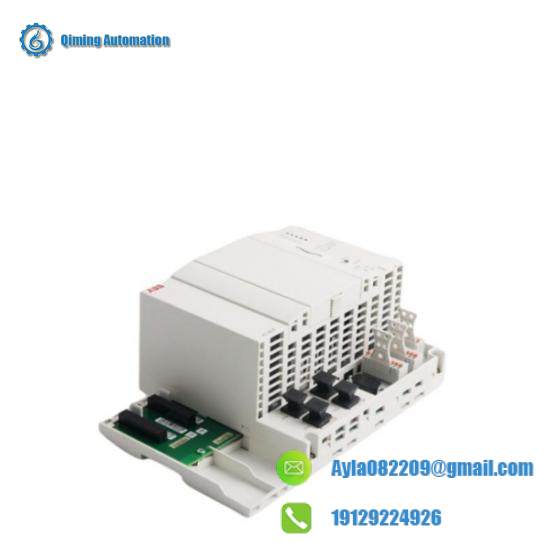

ABB PM902F 3BDH001000R0001 Product Introduction
Product Description
The ABB PM902F 3BDH001000R0001 is an advanced process controller, engineered to manage and optimize complex industrial processes in large-scale manufacturing and process industries. It serves as a central hub for coordinating multiple control loops, processing vast amounts of real-time data from field devices, and executing sophisticated control strategies to maintain process stability and efficiency. This controller is widely utilized in sectors such as chemical processing, oil and gas refining, pharmaceutical production, and pulp and paper manufacturing, where precise regulation of variables like temperature, pressure, flow, and level is critical for ensuring product quality, reducing energy consumption, and adhering to safety standards. With its high processing power and flexible configuration options, it seamlessly integrates with other automation components, enabling centralized monitoring and remote control to adapt to dynamic production demands.
Technical Parameters
- Processor: 64-bit quad-core processor with a clock speed of 2.0 GHz, delivering high performance for complex control algorithms and multitasking.
- Memory: 8 GB RAM and 32 GB flash memory, providing extensive storage for programs, historical data, and configuration files.
- Operating Voltage: 100 ~ 240 V AC, compatible with global power supply standards.
- Power Consumption: Typical 45 W, balancing performance with energy efficiency.
- Digital I/O Capacity: Up to 4096 digital inputs/outputs (expandable via modules), supporting diverse field device connections.
- Analog I/O Capacity: Up to 512 analog inputs/outputs (16-bit resolution), enabling precise measurement and control of process variables.
- Communication Interfaces: 4 x Ethernet ports (10/100/1000 Mbps), 2 x RS485 ports, 1 x USB 3.0 port, supporting protocols including Modbus TCP/IP, Profinet, and OPC UA for seamless system integration.
- Execution Speed: 0.002 μs per boolean instruction, ensuring rapid response to process changes.
- Operating Temperature Range: 0 ~ 60 °C, suitable for harsh industrial environments.
- Storage Temperature Range: -40 ~ 85 °C, maintaining integrity during storage and transportation.
- Relative Humidity: 5% ~ 95% (non-condensing), resistant to moisture-related issues.
- Isolation: 5 kV galvanic isolation between communication interfaces and power supply, enhancing system safety and reducing interference.
- Dimensions (L × W × H): 220 mm × 160 mm × 100 mm, compact for installation in control cabinets.
- Weight: Approximately 1.2 kg, lightweight for easy handling and mounting.
- Mounting Type: DIN rail or panel mounting, offering flexible installation options.
- Redundancy Support: Configurable hot-swap redundancy for critical components, minimizing downtime.
- Certifications: CE, UL, ATEX, IEC 61508 (SIL 3), meeting strict international safety and industrial standards.
The ABB PM902F 3BDH001000R0001 is available for global sale, covering all major industrial regions. Orders are processed promptly, with delivery guaranteed within 3 days, ensuring quick integration into your process control systems to minimize operational delays.
