Operating System Compatibility:Windows, Linux, Unix
Communication Protocol:ASCII
Data Transfer Rate:Up to 115 Kbps
Power Supply:12-24 VDC
Current Consumption:Max 50mA
Connection Interface:RS-232C
Module Dimensions:76.2mm x 50.8mm x 25.4mm
Weight:Approx. 45g

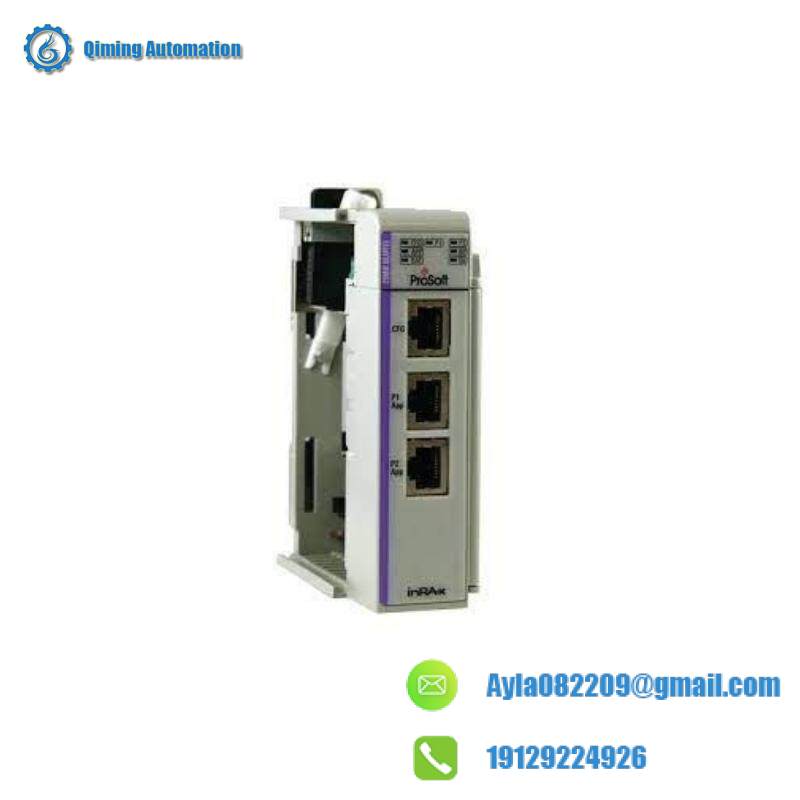

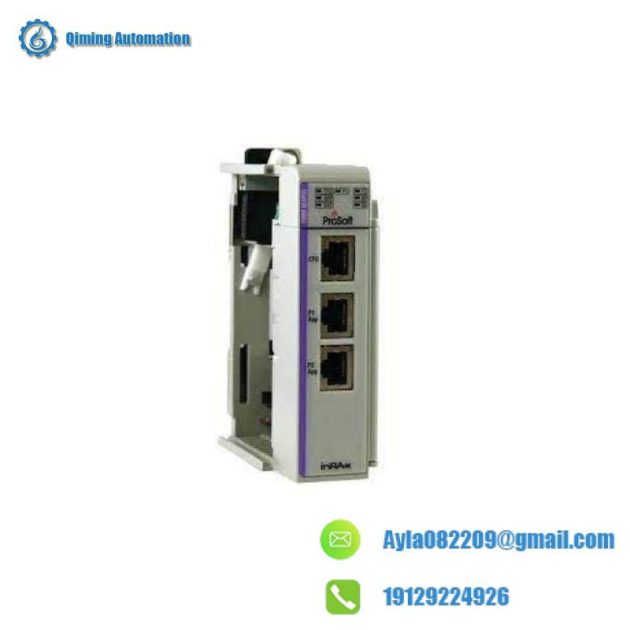

The PROSOFT MVI69-GSC module is engineered for robust performance and reliability, ensuring smooth operation in challenging industrial environments.
Equipped with a licensed backplane technology, it ensures high-speed data transfer between the MVI69 module and compact or micro PLCs, enhancing operational efficiency.
Its compatibility with Rockwell Automation’s CompactLogix and MicroLogix processors through a generic 1769 module installation provides unparalleled flexibility in system integration.
The module supports the emulation of Modbus master or slave devices on individual application ports, simplifying the setup and configuration process for diverse automation tasks.
With support for floating point data movement and customizable Enron, Daniel® implementations, the PROSOFT MVI69-GSC is designed to cater to the evolving needs of modern industrial automation systems.
Diagnostic data accessible via RSLogix 5000 controller tags enables real-time monitoring of node health, facilitating proactive maintenance and optimization.
