I/O Size:Up to 240 16-bit integers
Communication Parameters:Baud Rate: 110 to 115K, Stop Bits: 1 or 2, Data Size: 7 or 8 Bits, Parity: None, Even, Odd, RTS Timing Delays: 0 to 65535 ms
Floating Point Data:Supported for configurable Enron, Daniel® and other implementations
Protocol Interface:Modbus Master/Slave for versatile communication

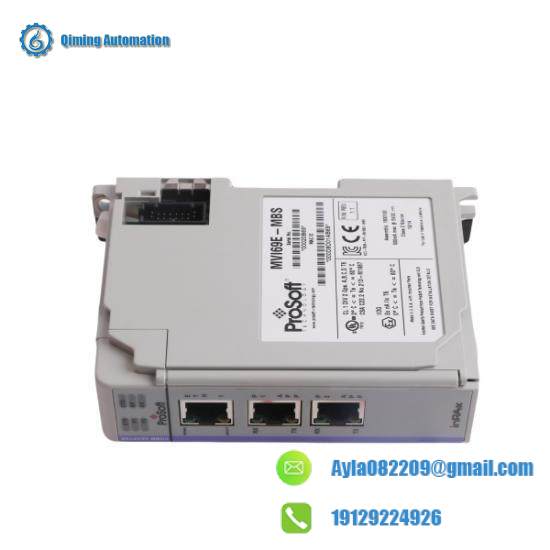

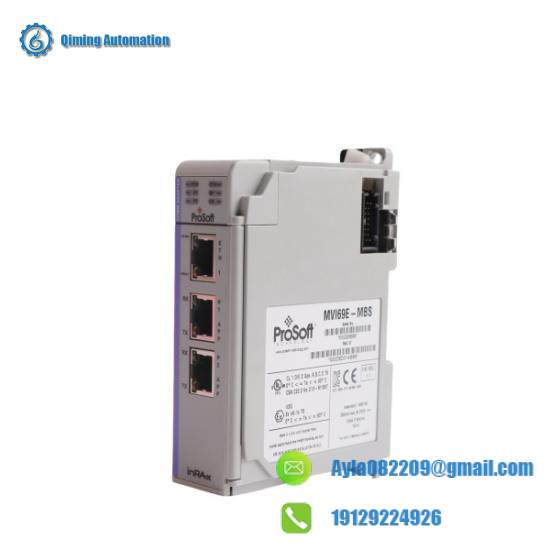

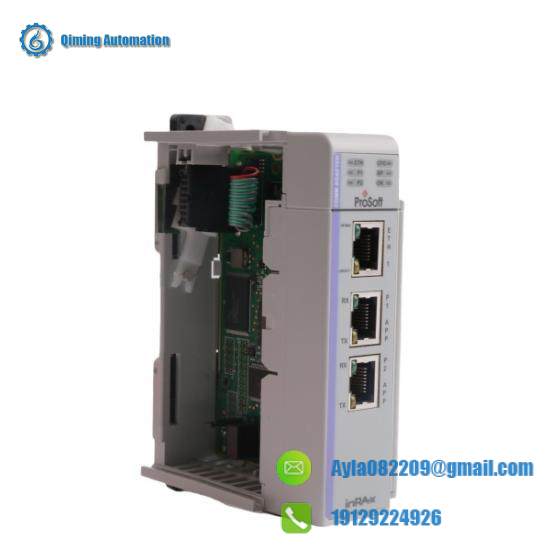

Experience seamless integration and enhanced functionality with our Prosoft MVI69E-MBS Communication Module. This cutting-edge module is specifically engineered to support CompactLogix processors with advanced 1769 I/O bus capabilities (version 16 and above), ensuring compatibility and efficiency.
Our module introduces an Add-on Instruction feature, which enables the creation of UDTs (User Defined Types). These UDTs provide comprehensive logical definitions for input/output, status, and control data, streamlining your automation process.
Built with licensed backplane technology, this module is manufactured under exclusive Rockwell Automation license. It ensures high-speed data transfer between the MVI69 module and your CompactLogix or MicroLogix processor, maximizing performance.
Installation is straightforward, with our module fitting seamlessly as a Generic 1769 module. We include a sample ladder logic guide to ease your setup and integration efforts. You’ll have access to view valuable module data and status directly in RSLogix 5000 controller tags and UDTs, enhancing real-time monitoring.
Benefit from the Modbus Master/Slave protocol interface, allowing you to emulate either a Modbus Master or Slave device on each individually-configurable application port. This versatile feature boosts the adaptability and flexibility of your industrial automation systems.
