ABB S-093H 3BHB009885R0004 Product Introduction
Product Description

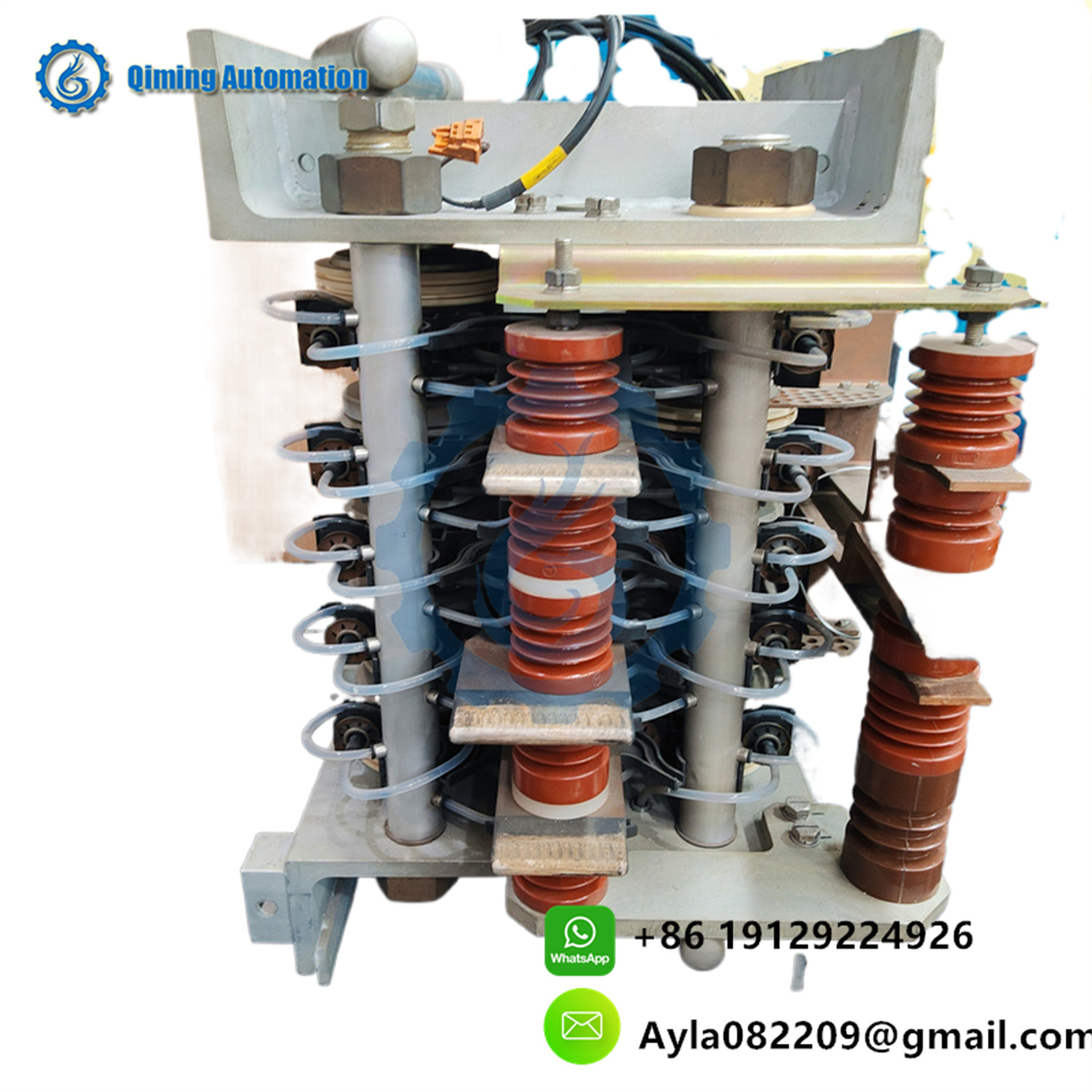

The ABB S-093H 3BHB009885R0004 is a high – performance controller with versatile applications. It can function as a safety PLC, performing and monitoring machine safety functions synchronously with the machine PLC. In addition, it serves as a medium and high – voltage thyristor phase module, controlling the phase of alternating current by adjusting the thyristor’s on – angle to change the AC phase angle, thus realizing AC phase control. It also plays a role in power conversion or distribution for large – scale systems, especially those with a capacity of up to 9 MVA.
Technical Parameters
- Product Structure: Available in rail – type, desktop, and embedded forms, providing flexibility for different installation requirements.
- Communication Interface: Equipped with a 3 – way RS232 or 485 serial port for seamless data transmission.
- Serial Port Rate: Supports a rate range from 300 to 9600 bps, adaptable to various communication scenarios.
- Communication Error Code: The error code is ≤ 10⁻⁴, ensuring highly reliable data communication.
- Operating Environment:
-
- Temperature: Can operate in the range of – 20 ~ 70 °C.
-
- Humidity: Tolerates humidity levels up to ≤ 95% non – condensing.
-
- Environment: Suitable for non – corrosive and non – explosive environments.
- Power Supply: Operates on a 10 – 30 V DC power supply.
- Module Power Consumption:
-
- Standby power consumption is 1 W.
-
- Transmit power consumption is 2 W.
- Product Size: L 85 * W 55 * H 65 (cm)
- Product Weight: 190 kg
- Shipping Size: L 100 * W 70 * H 90 (cm)
- Shipping Weight: 222 kg
- Country of Origin: Switzerland
