Filter Type:Line Filter
Series:FN258
Model Number:FN2583007
Frequency Range:47 Hz to 63 Hz
Input Power:Up to 2500 VA
Output Power Factor:0.9 to 0.95
Operating Temperature:-20°C to +70°C
Dimensions (WxHxD):120 mm x 100 mm x 65 mm
Weight:0.4 kg

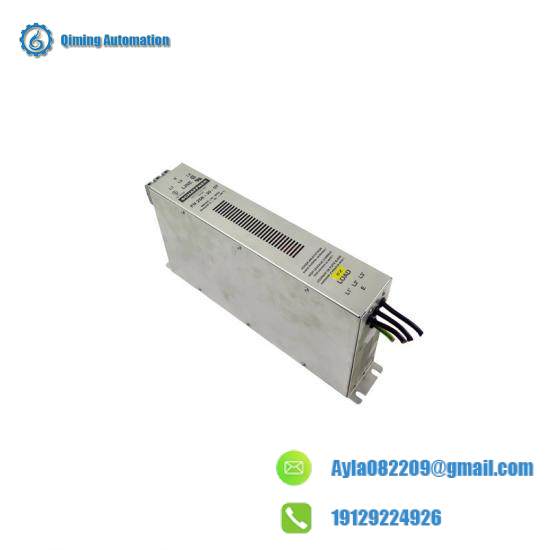

The Schaffner FN2583007 Inverter Line Filter is an advanced solution for industrial power conditioning, specifically engineered to handle the demanding conditions of today’s manufacturing environments. With its robust aluminum case design, this filter ensures durability and efficient heat dissipation under varying environmental conditions.
Featuring a wide input voltage range of 300 to 750 V and a frequency range of 47 to 63 Hz, the FN2583007 is compatible with a broad spectrum of inverter systems. Its maximum input current of 258 A makes it suitable for high-power applications.
Key to its effectiveness is the exceptional harmonic attenuation capability, which reduces unwanted harmonics by up to 70 dB, ensuring cleaner power delivery to sensitive electronic components. This significantly improves the overall system efficiency and reliability.
The filter’s high efficiency rating of 95% contributes to reduced energy consumption and lower operational costs, aligning with sustainability goals of modern industries. It is designed with ease of installation in mind, featuring a panel-mount configuration that integrates seamlessly into existing systems.
Operating within a temperature range from -20°C to +70°C, the FN2583007 is suitable for both indoor and outdoor industrial settings. Its compact size and lightweight construction make it versatile for different mounting scenarios, enhancing its practicality and adaptability.
