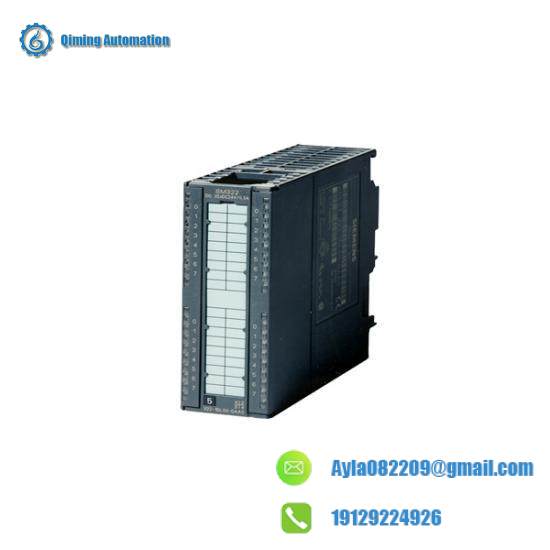

Siemens 6ES7322-1BH01-0AA0 Digital Output Module – High Precision Control Solution

Model Type:6ES7322-1BH01-0AA0

Manufacturer:Siemens

Net Weight (kg):0.339

Packaging Dimension:14.90 x 15.30 x 4.30 cm

Module Capacity:32 Channels

Output Voltage:24 V DC

Current Rating:0.5 A

Channel Configuration:Groups of 8

Supply Voltage Range:208-240 Volts AC

Amperage:4.2 Amps

Frequency Range:0.1-600 Hz

Built-in Features:[“EMI Filter”,”Fieldbus Modules (DeviceNet, Profibus, LonWorks, CANopen)”,”RFI-Switch for Mains”,”DC BUS Sharing”]

Protection Level:Complete Protection

Diagnosis Function:Short-Circuit to L+, Ground Wire Break, Supply Voltage

    The Siemens 6ES7322-1BH01-0AA0 Digital Output Module is a high-performance component designed for integration into advanced industrial automation systems. Its robust design ensures reliable operation under demanding conditions, offering unparalleled precision and accuracy in controlling electrical processes.

    Featuring optically isolated relay outputs, this module guarantees minimal interference and enhanced safety, making it suitable for environments where high levels of electrical isolation are required. Each of the 32 channels is equipped to handle 24V DC at 0.5A, providing ample capacity for various industrial applications.

    With an operating frequency of up to 600 Hz, the module is capable of responding swiftly to control signals, ensuring smooth and efficient system operation. The source output configuration (PNP) allows for direct connection to load circuits without the need for additional components, simplifying installation and reducing costs.

    Designed for compatibility with the SIMATIC S7-300 series, the module seamlessly integrates with existing Siemens automation infrastructure, enhancing productivity and minimizing downtime. Its compact size and lightweight construction make it easy to install in space-constrained areas, while its IP20 environmental rating ensures protection against dust and light splashes.

    Operating within a temperature range of -25°C to +60°C, the module is built to withstand extreme environmental conditions, ensuring continuous performance throughout the year. Additionally, the inclusion of front connector options (screw terminals or push-in) provides flexibility in connecting to various wiring configurations, accommodating diverse installation requirements.
