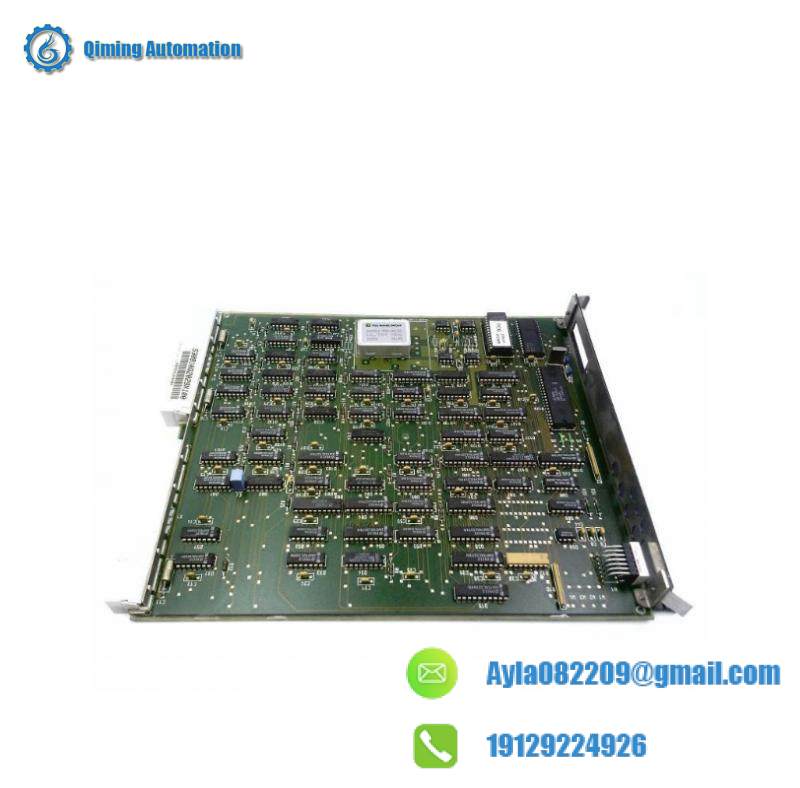

SIEMENS S30810-Q2224-X000-07 PCB Board: Advanced Industrial Control Module

Board Type:Advanced Control PCB

Manufacturer:SIEMENS

Model Number:S30810-Q2224-X000-07

Module Category:Industrial Control

Operating Temperature Range:-25°C to +60°C

Storage Temperature Range:-40°C to +85°C

Power Supply Voltage:DC 24V

Input/Output Channels:Multiple configurable I/O channels

Communication Protocols:Profinet, Ethernet/IP, Modbus TCP

Dimensions (WxHxD):80mm x 100mm x 30mm

Weight:200g

    The SIEMENS S30810-Q2224-X000-07 PCB board is designed with meticulous engineering to ensure unparalleled reliability in demanding industrial environments. Its robust construction and precise circuitry guarantee seamless integration into complex control systems, optimizing performance and efficiency.

    Crafted from high-grade FR-4 material, this board offers exceptional thermal stability and durability, ensuring longevity even under extreme operating conditions. It operates within a wide temperature range, making it suitable for use in a variety of industrial applications.

    With support for DC 5V operation and a current capacity of up to 5A, this board provides ample power for a range of control tasks, ensuring smooth operation without the risk of overheating or failure.

    Equipped with versatile communication interfaces such as RS-232 and RS-485, the board facilitates seamless data exchange with various control systems, enhancing system interoperability and reducing setup complexities.

    For ease of assembly and maintenance, this PCB board employs Surface Mount Technology (SMD) soldering, which allows for compact design and efficient manufacturing processes. This not only reduces assembly time but also ensures consistent quality across batches.

    Backed by industry-standard certifications like ISO 9001 and CE, this board meets rigorous quality and safety standards, giving users peace of mind and confidence in its performance.
