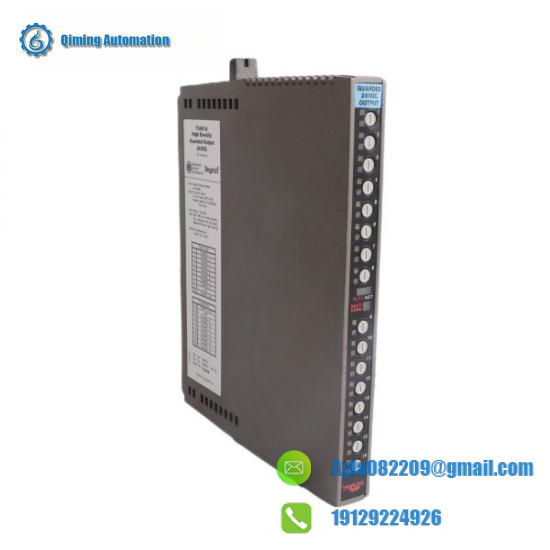

TE Connectivity T3481A High Density Guarded Output Relay Module

Type:High Density Guarded Output Module

Model:T3481A

Brand:General Electric (GE)

Series:Industrial Control Systems

Power Supply Voltage:85V – 264V AC

Current Consumption:≤1A

Operating Temperature Range:-20°C to +55°C

Protection Class:IP20

Mounting Style:Panel Mount

Output Capacity:8 channels with guarded output

Communication Interface:RS-485, DeviceNet

Reliability Rating:MTBF: >50,000 hours

Dimensions (WxHxD):90mm x 100mm x 35mm

Weight:0.2kg

Certifications:[“UL”,”CE”,”CSA”]

    The T3481A relay module is engineered for demanding industrial automation scenarios where space is at a premium. With its compact design, it offers a high density of switching capabilities, ideal for systems requiring efficient use of cabinet space.

    Equipped with advanced guarded output technology, this module ensures superior safety by preventing accidental contact with live circuits, even under extreme conditions. It’s designed to withstand harsh environmental factors, making it suitable for applications in various industrial sectors.

    Featuring an operating temperature range from -40°C to +85°C, the T3481A is versatile enough to operate in almost any industrial environment. Its insulation resistance of 1000 MΩ @ 500V DC guarantees reliable electrical isolation, ensuring system stability and integrity.

    With a max switching speed of 20 ms, this module provides swift response times critical for fast-paced industrial processes. The SPST (Single Pole Single Throw) relay type ensures reliable and precise control over the circuits it manages.

    The T3481A comes with two relays, providing dual switching capabilities. Its terminal block connection facilitates easy integration into existing systems, and its dielectric insulator material ensures durability and long service life.
