Model Number:3700/3700A
Manufacturer:TRICONEX
Type:Analog I/O Module
Voltage:0-5V, + 6%
TMR Technology:Yes
Input Points:32, diff, DC coupled
Isolated Points:No
Input Update Rate:55 ms
Resolution:12 bits
Accuracy:< 0.15% of FSR, from 0° to 60°C
Input Resistance (load):30 MΩ (DC), min.
Power-Off Resistance:30 KΩ (DC), typical
Common Mode Rejection:-80 dB (DC-100Hz), typical
Common Mode Range:-12V to +12V peak
Leg-to-Leg Isolation:200 KΩ, typical
Normal Mode Rejection @ 8Hz:-3 dB
Normal Mode Rejection @ 60Hz:-17 dB
Normal Mode Rejection @ 120Hz:-23 dB

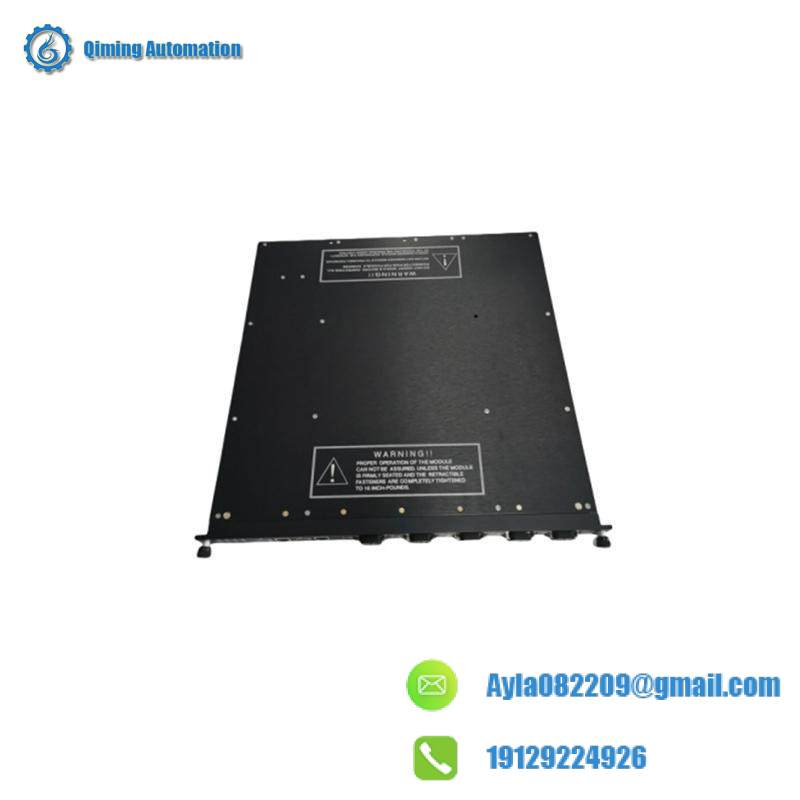

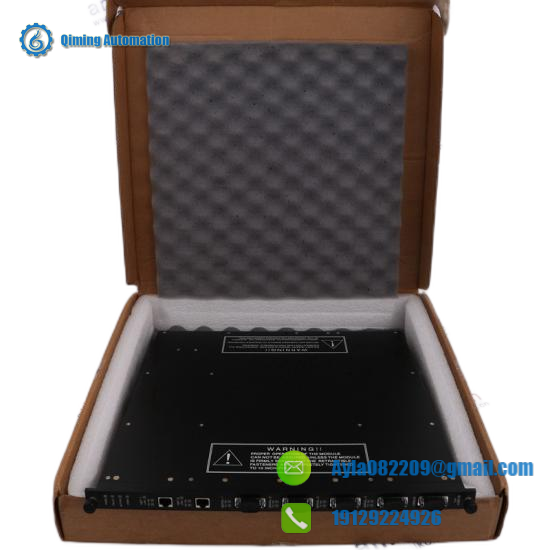

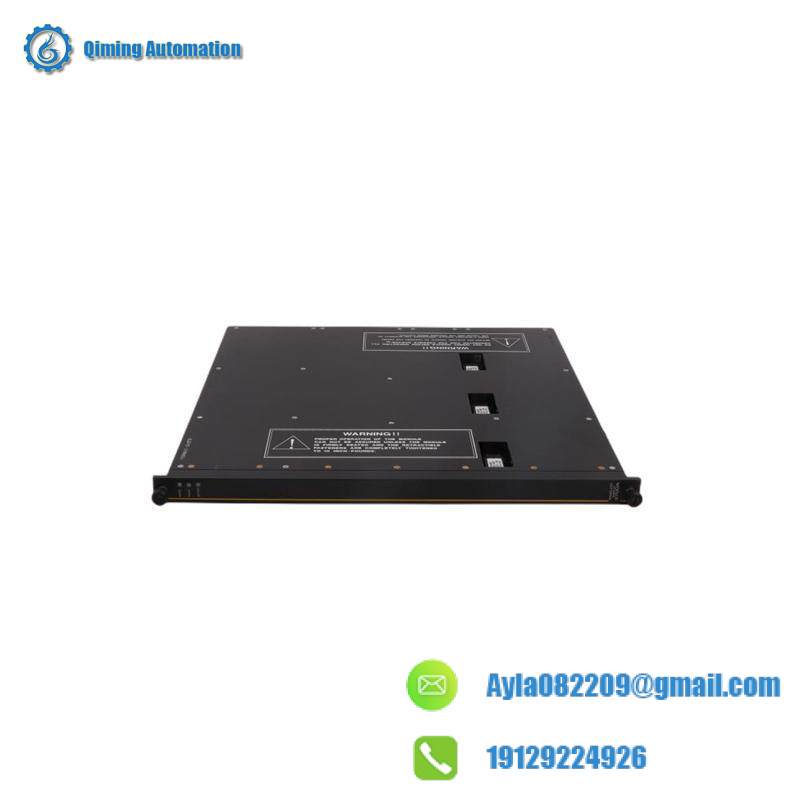

The TRICONEX 3700A is a cutting-edge analog input module designed specifically for industrial control systems.
Its TMR architecture ensures high reliability and safety, making it an ideal choice for mission-critical applications.
With its 32 differential input channels, this module can handle a wide range of signals with precision and accuracy.
The 12-bit resolution and low power consumption contribute to its superior performance.
Additionally, the TRICONEX 3700A boasts a robust design capable of operating in harsh environments, ensuring consistent operation even under challenging conditions.
Whether you’re monitoring temperatures, pressures, or other critical process variables, the TRICONEX 3700A delivers the precision and dependability required for modern industrial automation.
