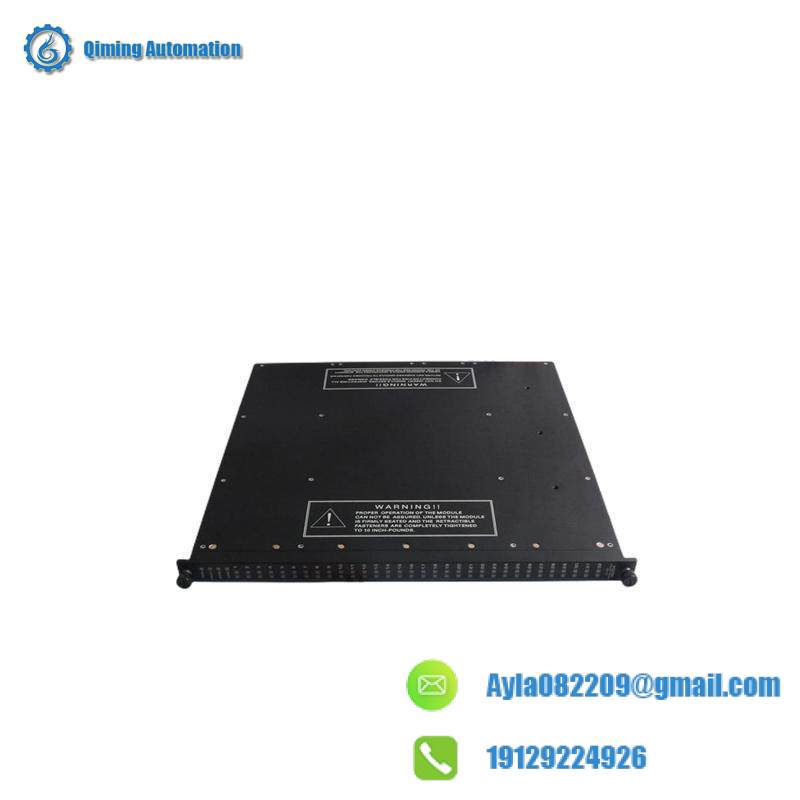

TRICONEX DO3401 Output Module: Reliable Industrial Control Solution

Model Type:Digital Input Module

Manufacturer:TRICONEX

Points:16, commoned

Nominal Output Voltage:24 VDC

Specified Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:- 0.6 VDC

Output Current (Switching):<4.8 A, self-limiting | 3.0 A, typical

Output Current (Degraded mode):> 0.7 A, self-limiting | 1.5 A, typical

Field Alarms:Loss of field power, output point shorted

On or Off Loop-back Thresholds:0–5 VDC = Off region | 6–14 VDC = transition region | 15–30 VDC = On region

Leakage to Load (Off):Minimal

Series:DO3401

Material Coding:DO3401

    The TRICONEX DO3401 Output Module is engineered for seamless integration into complex industrial control systems, offering unparalleled reliability and efficiency.

    Crafted from high-quality materials, this module ensures long-lasting performance and robustness under harsh industrial conditions.

    With its wide operational voltage range, the DO3401 is versatile, compatible with various power sources found in different industrial environments.

    This module supports both on/off control and loop-back threshold detection, providing precise signal processing and enhanced system responsiveness.

    Its ability to handle up to 16 commoned points makes it suitable for a variety of applications, from monitoring critical processes to automating machinery operations.

    Equipped with advanced protection mechanisms, the TRICONEX DO3401 Output Module safeguards against overvoltage and reverse polarity, ensuring uninterrupted operation and system integrity.
