Startup Time:6 ms max.
Control Velocity Output:-10 to 10 V
Data Backup:Backup using the CPU module
External Contact Output:Servo on, driver reset, and brake off
Encoder Type:Absolute or incremental (phase A/B)
Maximum Pulse Rate:2M pps max. / 4-time multiplication mode
Control System:Semi-closed loop control based on encoder feedback
External Contact Input:Limit switch, driver alarm, home

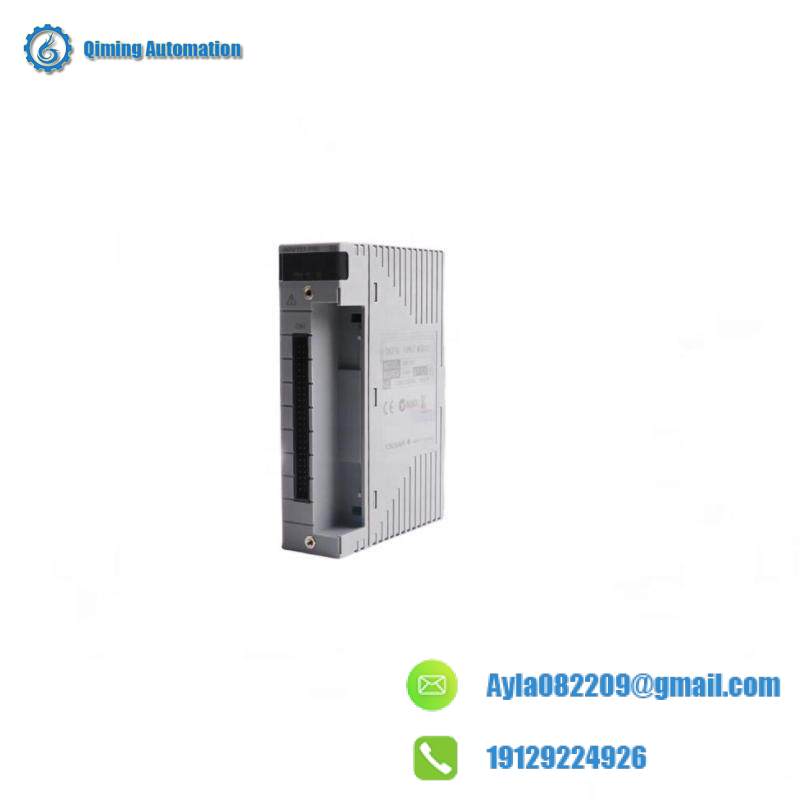

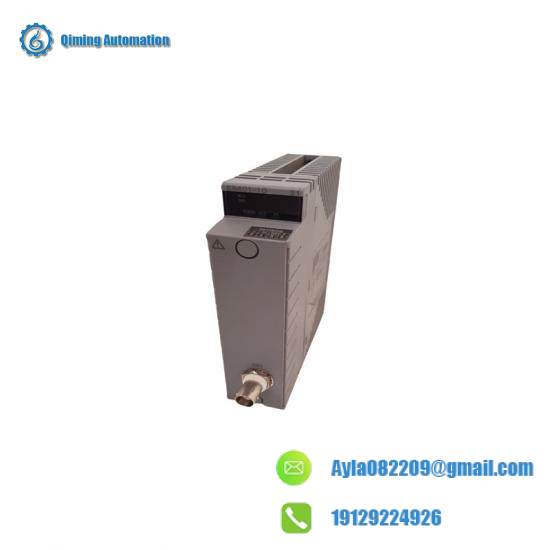

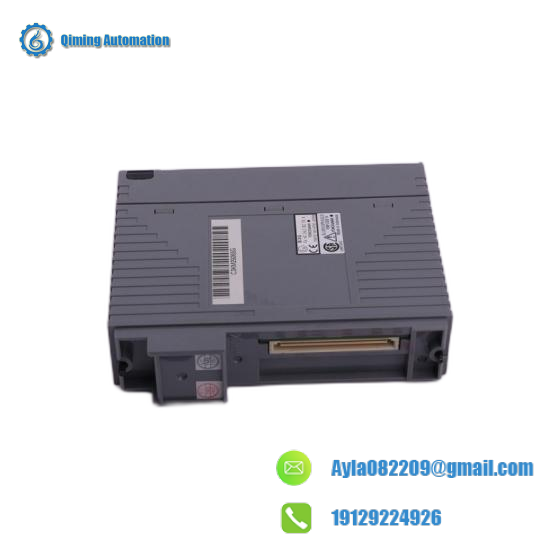

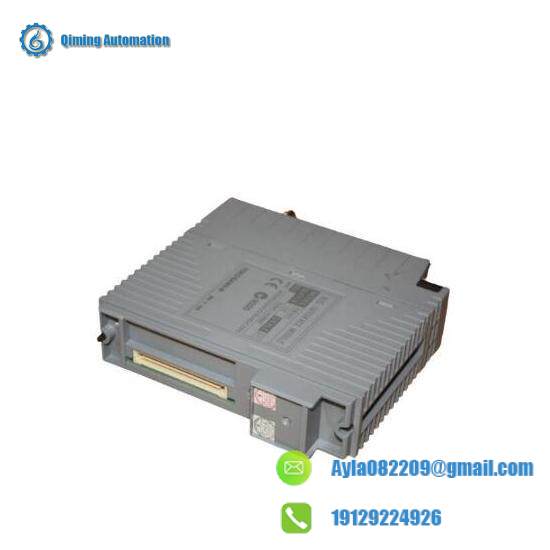

The YOKOGAWA F3NC02-0N high-speed positioning module is designed for precision control in industrial environments. With a maximum startup time of just 6 ms, this module ensures quick response times for critical applications. Its control velocity output ranges from -10 to 10 V, providing a wide range for fine-tuning motor speeds. Data backup is managed through the CPU module, ensuring reliable operation even in the event of power interruptions. The external contact output features servo on, driver reset, and brake off functions, enhancing system safety and efficiency. The module supports both absolute and incremental encoders, offering flexibility for various installation scenarios. The incremental encoder operates at up to 2 million pulses per second (Mpps) with 4-time multiplication mode, delivering exceptional accuracy. The semi-closed loop control system based on encoder feedback ensures consistent performance, making the F3NC02-0N an indispensable component for modern automation systems.
